Code:4549550198202

Brand: Elecom (ELECOM)

Model: M-TM10DBBK/EC

Product color: Black

Size information: Mouse only

Product size: Height 2.8, Width 5.6, Depth 10.4

About this product
This is a slim mouse with a thickness of 28mm that is easy to carry in a bag.
It adopts a silent switch that does not make a clicking sound when clicking the mouse, so it can be used in places where sound is a concern.
Supported OS: Windows 10, Windows 8.1, Windows 7, macOS Catalina (10.15). Updates to the latest versions of each OS and installation of service packs may be required.

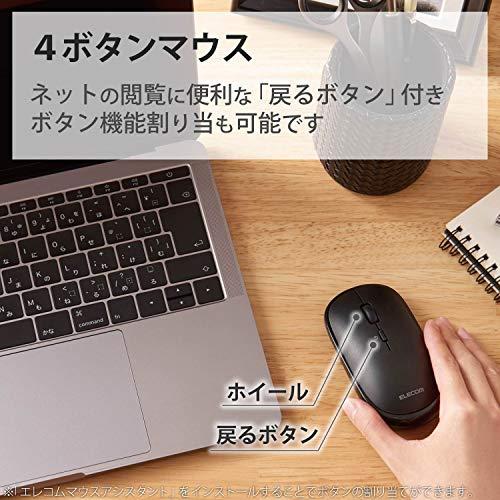

It is a 4-button type with a "Back" button that is convenient for browsing the internet.

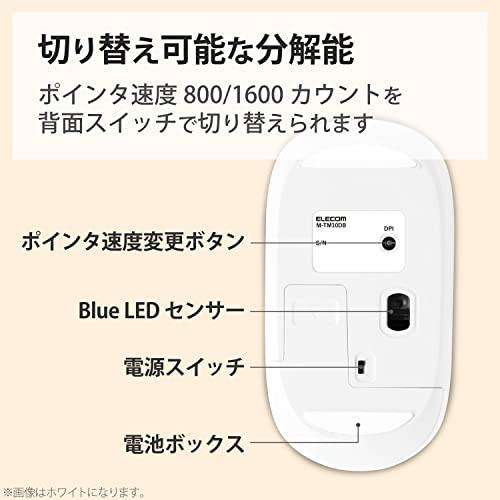

Pointer movement speed can be switched between 800/1600 counts in two steps.
› See more Brand Elecom (ELECOM)
Color: Black
Connection technology: USB, 2.4GHz wireless
Features: Portable, Soundless
Movement detection technology: Optical
This is a slim mouse with a thickness of 28mm that is easy to carry in a bag.
It adopts a silent switch that does not make a clicking sound when clicking the mouse, so it can be used in places where sound is a concern.
Supported OS: Windows 10, Windows 8.1, Windows 7, macOS Catalina (10.15). Updates to the latest versions of each OS and installation of service packs may be required.
It is a 4-button type with a "Back" button that is convenient for browsing the internet.
Pointer movement speed can be switched between 800/1600 counts in two steps.
› See more

Shipping size: Height 12.7, Width 6.1, Depth 2.8

Shipping weight: 40g

Specifications
Interface: USB
Connector shape: USB (A) male
Supported OS: Windows 10, Windows 8.1, Windows 7, macOS Catalina (10.15). Updates to the latest versions of each OS and installation of service packs may be required.
Resolution: 800/1600 counts (switchable)
Communication method: GFSK method
Radio frequency: 2.4GHz band
Radio reach: When used on a magnetic material (iron desk, etc.): 3m, When used on a non-magnetic material (wooden desk, etc.): 10m. These are test values in our environment and not guaranteed.
Reading method: Optical sensor method
LED color: Blue
Number of buttons: 4 including wheel button
Number of wheels: 1
Receiver storage:
Continuous operation time: approximately 330 hours
Continuous standby time: approximately 833 days
Expected battery usage period: approximately 628 days (assuming 8 hours of computer operation per day with 5% of that time using the mouse)
Power source (main body): One AA alkaline dry battery, manganese dry battery, or nickel-metal hydride battery
Color: Black

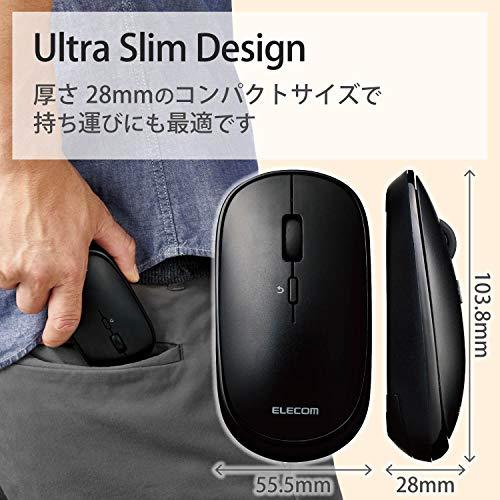

External dimensions (mouse body): Width 55.5mm, Depth 103.8mm, Height 28.0mm
Size classification: M size
Weight (mouse body): approximately 66g including batteries
External dimensions (receiver): approximately Width 15.0mm, Depth 18.0mm, Height 6.0mm
Weight (receiver): approximately 2g
Accessories: 1 AA alkaline dry battery for operation check
Warranty period: 6 months

Description
This is a slim mouse with a thickness of 28mm that is easy to carry in a bag.
Environmentally friendly, with simple packaging that reduces waste and allows for smooth unpacking.
Equipped with Blue LED that reflects light more accurately even with small irregularities or dust, enabling comfortable use regardless of location.
Pointer movement speed can be switched between 800/1600 counts in two steps.
It adopts a silent switch that does not make a clicking sound when clicking the mouse, so it can be used in places where sound is a concern.
It is a 4-button type with a "Back" button that is convenient for browsing the internet.
By using the free downloadable "Elecom Mouse Assistant," you can assign functions to each button and use presentation mode.
Enabling presentation mode allows switching between normal mouse mode and presentation mode, which can operate slide forward/backward, etc. Button functions in presentation mode, scroll, and cursor movement can be customized.
Wireless type using 2.4GHz band, usable within approximately 10m on non-magnetic materials, and about 3m on magnetic materials like steel desks. (Tested in our environment)

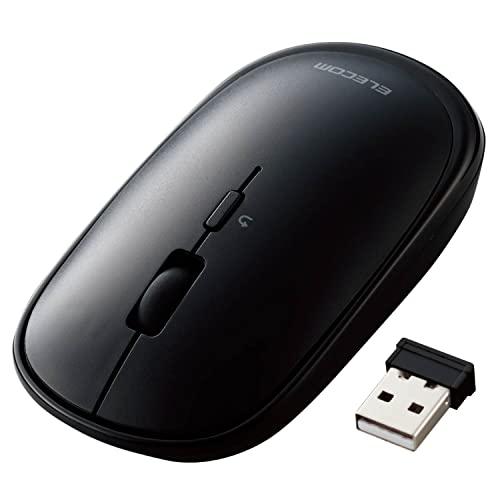

Adopts a coin-sized micro receiver that can be connected to a laptop's USB port without concern and carried around while attached.
The receiver can be stored inside the mouse body, making it convenient to carry and reducing the risk of losing the receiver.
There is a power switch on the back of the main body to prevent battery consumption when not in use.
Equipped with a battery level indicator lamp that notifies when it is time to replace the batteries.
M size, ideal for mobile use with a slim design.

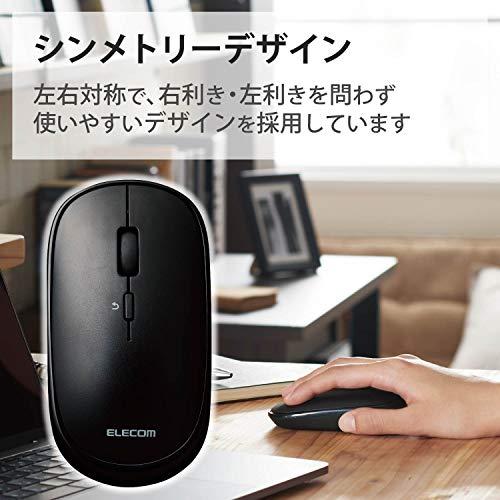

Symmetrical design suitable for both right-handed and left-handed users.



Popular 4 selections of keyboards


Popular 4 selections of chargers and mobile batteries


Explanation by manufacturer of popular 4 mice

Equipped with silent switch

It adopts a silent switch that does not make a clicking sound when clicking the mouse, so it can be used in places where sound is a concern

Equipped with Blue LED

It adopts a Blue LED that reflects light more accurately even with small irregularities or dust, enabling comfortable use regardless of location

4-button type

A 4-button type with a "Back" button that is convenient for browsing the internet

Supports presentation mode

Enabling presentation mode allows switching between normal mouse mode and presentation mode, which can operate slide forward/backward, etc. Button operations, scroll, and cursor movement in presentation mode can be customized.

Pointer speed change button

Pointer movement speed can be switched between 800/1600 counts in two steps

Function assignment support

Using the free downloadable "Elecom Mouse Assistant," you can assign functions to each button and use presentation mode.

Adopts a micro receiver

Uses a coin-sized micro receiver that can be connected to a laptop's USB port without concern and carried around while attached. The receiver can be stored inside the mouse body, making it convenient to carry and reducing the risk of losing it.

Power switch

There is a power switch on the back of the main body to prevent battery consumption when not in use.

Battery level indicator lamp

Equipped with a battery level indicator lamp that notifies when it is time to replace the batteries.
