Code: 4549550174732

Brand: Elecom (ELECOM)

Model: ECT-0720BK

Product color: Black

Size information: 2) Outlet 12

Product size: Height 0.1, Width 13, Depth 19.8

Product weight: 855

About this product

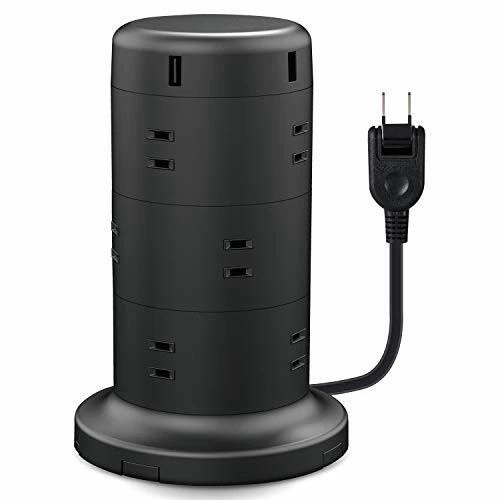

This is a tower-shaped USB power strip with 12 outlets and 5 USB ports integrated.
Equipped with USB ports, allowing simultaneous charging of smartphones and tablets without using an AC adapter, alongside a computer.
The outlets are equipped with a "dust prevention shutter" to prevent dust entry when not in use.
The outlets use heat-resistant thermosetting resin that is less likely to melt in case of heat generation, effectively preventing electrical fires.
The outlets are staggered by 45 degrees per layer, making it less likely to interfere with other outlets when connecting large plugs such as AC adapters.

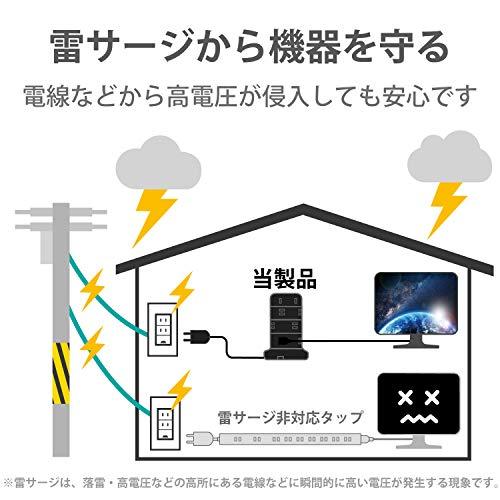

Equipped with a component (varistor) that absorbs lightning surges up to 12,500V caused by induced lightning, protecting connected devices. (Surge voltage of 12,500V is based on JEC210/212 standards. Performance may degrade depending on voltage received and number of surges.)
Uses a double-coated cord compliant with Japan Wiring System Industry Association standards (JWDS0010). Effective in preventing electric shock and fire caused by disconnection or damage to the coating.
Increased display count with the Elecom (ELECOM) brand
Color: Black
Total power outlets: 12
Voltage: 125 volts
Features USB slots About this product
This is a tower-shaped USB power strip with 12 outlets and 5 USB ports integrated.
Equipped with USB ports, allowing simultaneous charging of smartphones and tablets without using an AC adapter, alongside a computer.
The outlets are equipped with a "dust prevention shutter" to prevent dust entry when not in use.
The outlets use heat-resistant thermosetting resin that is less likely to melt in case of heat generation, effectively preventing electrical fires.
The outlets are staggered by 45 degrees per layer, making it less likely to interfere with other outlets when connecting large plugs such as AC adapters.
Equipped with a component (varistor) that absorbs lightning surges up to 12,500V caused by induced lightning, protecting connected devices. (Surge voltage of 12,500V is based on JEC210/212 standards. Performance may degrade depending on voltage received and number of surges.)
Uses a double-coated cord compliant with Japan Wiring System Industry Association standards (JWDS0010). Effective in preventing electric shock and fire caused by disconnection or damage to the coating.
Increase display count

Shipping size: Height 21.2, Width 13.9, Depth 13.7

Shipping weight: 870

Specifications
Compatible devices: Devices that operate using 2-pin outlets or USB-A ports for power supply or charging.
Main body outlet shape: 2-pin
Number of main body outlets: 12
AC rated output power: 1500W
AC rated output voltage: 125V
AC rated output current: 15A
USB terminals: USB-A ports 5
USB rated total output power: 24W (12W per port)
USB rated output voltage: DC 5V
USB rated total output current: 4.8A (2.4A per port)
Plug specifications: 2-pin
Swing plug:
Insulated cap plug:
Cable length: approximately 2.0m
Double coating:
Switch:
Lightning guard:
Dust shutter:
Pull-out prevention function:
Magnet:
Wall-mount hook:
Noise filter:
Power indicator lamp:
Modular jack included:
Color: Black
Material: Main body: PC resin, Outlet: Phenolic resin
External dimensions: approximately Width 130, Depth 130, Height 198 (mm), excluding cable and plug parts
Weight: approximately 855g
Usable region: Japan domestic
Electrical appliance law: PSE compliant
Warranty period: 1 year
Accessories: 5 fixing screws (including 1 spare), Instruction manual
Other: Equipped with a movable leg part for preventing tipping, which can be temporarily fixed with screws using these legs.

Description
This is a tower-shaped USB power strip with 12 outlets and 5 USB ports integrated.
Equipped with USB ports, allowing simultaneous charging of smartphones and tablets without using an AC adapter, alongside a computer.
The outlets are equipped with a "dust prevention shutter" to prevent dust entry when not in use.
The outlets use heat-resistant thermosetting resin that is less likely to melt in case of heat generation, effectively preventing electrical fires.
The outlets are staggered by 45 degrees per layer, making it less likely to interfere with other outlets when connecting large plugs such as AC adapters.
Equipped with a component (varistor) that absorbs lightning surges up to 12,500V caused by induced lightning, protecting connected devices. (Surge voltage of 12,500V is based on JEC210/212 standards. Performance may degrade depending on voltage received and number of surges.)
Uses a double-coated cord compliant with Japan Wiring System Industry Association standards (JWDS0010). Effective in preventing electric shock and fire caused by disconnection or damage to the coating.
The cable can be taken out downward or horizontally using the groove on the bottom surface.
The groove for taking out the cable from the side can be covered with the included part.
The pins of the 2-pin outlet plug are equipped with an insulation sleeve, which is effective in preventing fires caused by tracking phenomena.
Adopts a 180-degree swingable outlet plug for easy installation in narrow spaces.
Equipped with 5 USB-A ports, allowing simultaneous charging of up to 5 compatible smartphones. Total output is 4.8A, with 2.4A per port.
The high-performance IC built into the USB ports recognizes connected devices and supports "Omakase Charging" to charge with appropriate output.

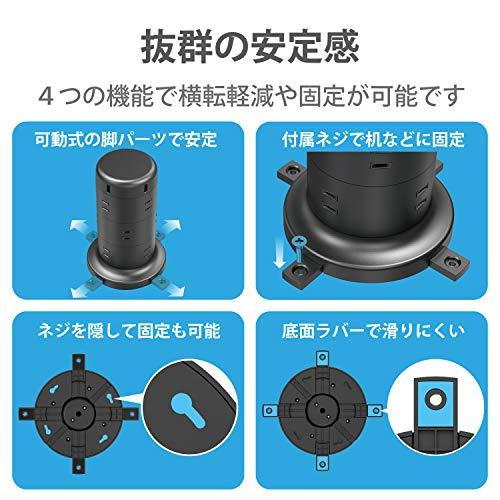

By pulling out the leg parts stored on the bottom of the main body, stable placement is possible even if the weight distribution is unbalanced due to connected adapters.
The leg parts are equipped with anti-slip members, making the main body less likely to slide sideways even when the connected cables are pulled.
Holes are provided in the leg parts for temporary fixing using the included screws.
Holes for temporary fixing are also provided on the bottom surface of the main body, allowing installation on walls by hooking onto screw heads.
Various cables necessary for charging via USB ports are not included; please purchase separately.
If fixing the product to a house or furniture with screws, electrical work by a licensed electrician is required.
This product meets one or more of our internal environmental standards and displays the "THINK ECOLOGY" mark.
Committed to environmental conservation, this product's packaging reduces plastic weight by over 20% compared to our standard products.
This product's packaging consists solely of paper, cardboard, and plastic bags, contributing to environmental conservation.

Inquiries about the product
Elecom General Information Center
TEL. 0570-084-465
FAX. 0570-050-012
Reception hours / 10:00~19:00, open year-round, including holidays



Tower-type Design Tap

Access store


Magnet-equipped Tap

Access store


8-outlet Switchable Tap

Access store


USB-equipped Tap

Access store


Woodgrain Tap

Access store



Elecom Co., Ltd. is committed to making your lifestyle more comfortable through peripherals such as smartphones, tablets, and computers. Manufacturer's description

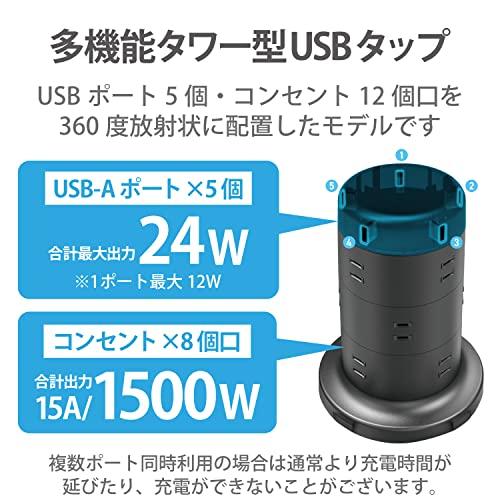

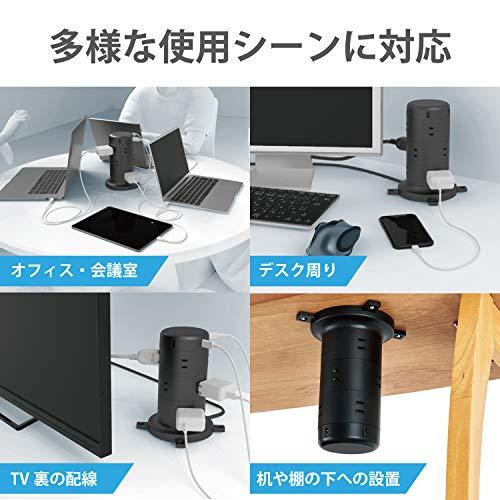

This is a tower-type 12-outlet power strip with five USB ports, with a total maximum output of 4.8A. The USB ports and outlets are arranged radially at 360 degrees, making it ideal for use on conference room tables. The movable leg parts help stabilize the device even when heavy power adapters cause imbalance, and the holes provided can be used for temporary fixing with screws.

Six product features
Six convenient functions

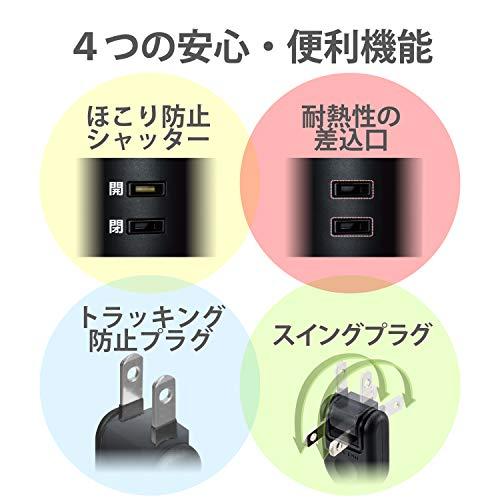

Outlet plug

Adopts a 180-degree swingable outlet plug for easy installation in narrow spaces.

The pins of the 2-pin outlet plug are equipped with an insulation sleeve, which is effective in preventing fires caused by tracking phenomena.

AC outlet main body material

Equipped with a "dust prevention shutter" to prevent dust entry when not in use.

Furthermore, it uses heat-resistant thermosetting resin that is less likely to melt in case of heat generation, effectively preventing electrical fires.

Cable

Uses a double-coated cord compliant with Japan Wiring System Industry Association standards (JWDS0010). Effective in preventing electric shock and fire caused by disconnection or damage to the coating.

Lightning surge function

Equipped with a component (varistor) that absorbs lightning surges up to 12,500V caused by induced lightning, protecting connected devices. (Maximum surge voltage of 12,500V is based on JEC210/212 standards. Performance may degrade depending on received voltage and number of surges.)
