Code:4549550286725

Brand:ELECOM

Model: DPA-DS07BK

Product Color: Black

Size Information: Black: Dual (~9kg)

About this product

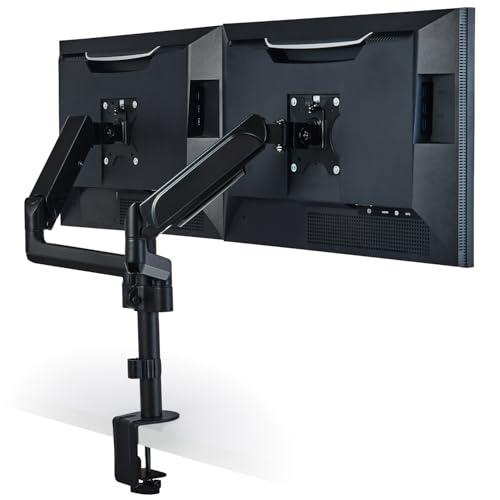

Gas spring dual monitor arm compatible with 17~32 inch monitors, with pole included.
You can make effective use of the space under the monitor and use the desk more broadly.
It is a gas spring type that can be moved with light force.
You can freely move the monitor position and set it to your preferred position.
It is a dual arm type that can accommodate 2 monitors.
It features a wide range of motion with a 5-axis movable arm and a pole that makes height adjustment easy.
Compatible with monitors adhering to VESA standards (75mm 75mm, 100mm 100mm).
Mounting type to increase display count, tabletop mount.
Movement type: tiltable.
Brand: ELECOM
Material: Alloy steel
Maximum compatible size: 32 inches
Color: Black
Minimum compatible size: 17 inches
Compatible devices: TV, Monitor
Maximum tilt angle: 90 degrees
Manufacturer: ELECOM
About this product
Gas spring dual monitor arm compatible with 17~32 inch monitors, with pole included.
You can make effective use of the space under the monitor and use the desk more broadly.
It is a gas spring type that can be moved with light force.
You can freely move the monitor position and set it to your preferred position.
It is a dual arm type that can accommodate 2 monitors.
It features a wide range of motion with a 5-axis movable arm and a pole that makes height adjustment easy.
Compatible with monitors adhering to VESA standards (75mm 75mm, 100mm 100mm).
Increase display count

Shipping size: Height 40.1cm, Width 24cm, Depth 14.7cm

Shipping weight: 5470g

Specifications
Supported size: 17~32 inches
Load capacity: approximately 1~9kg (per arm)
Dimensions: Width approximately 940mm, Depth approximately 123mm, Height approximately 715mm
Weight: approximately 4.76kg
Color: Black
Number of screens to mount: 2 screens
Material: Steel, Aluminum alloy, ABS
Movable mechanism: Gas spring type
Supported standards: VESA standards (75mm 75mm, 100mm 100mm)

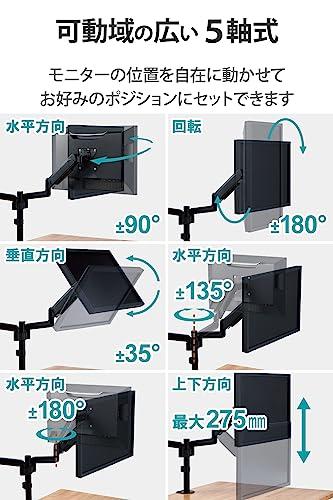

Range of motion: Pan: 90° left/right, Rotation: 360°, Tilt: 35° up/down
Maximum thickness of mounting surface: Clamp (fixed by squeezing): 10~85mm, Grommet (fixed through hole): 10~40mm
Fixing method: Clamp type / Grommet type
Number of axes: 5 axes
Set contents: 1 arm, 1 pole, 2 VESA mounts, 1 clamp, 1 cable holder, 1 cushion pad, 1 upper plate for grommet, 1 lower plate for grommet
Set contents: 2 screws, 3 pan screws (M6 16), 1 small hex wrench, 1 large hex wrench, 8 screws (M4 12), 8 screws (M4 16), 8 screws (M5 12), 8 screws (M5 16), 8 washers, 8 resin spacers

Description
Gas spring dual monitor arm compatible with 17~32 inch monitors, with pole included.
You can make effective use of the space under the monitor and use the desk more broadly.
It is a gas spring type that can be moved with light force.
You can freely move the monitor position and set it to your preferred position.
It is a dual arm type that can accommodate 2 monitors.
It features a wide range of motion with a 5-axis movable arm and a pole that makes height adjustment easy.

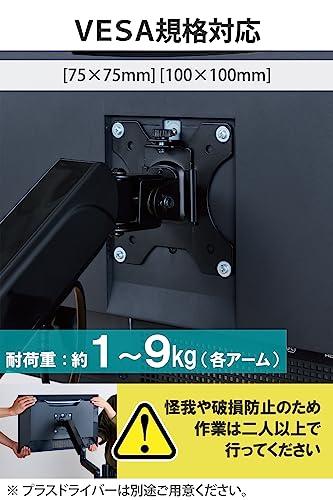

Compatible with monitors adhering to VESA standards (75mm 75mm, 100mm 100mm).
You can choose between two installation methods: clamp fixing on the desk surface or fixing through a hole in the desk with a grommet.
Attach the VESA mount to the back of the monitor, insert it into the monitor arm mounting part from above, fix with screws, and then use.
Once the monitor's viewing angle is set, tighten the connection screws firmly to fix.
It comes with a cable holder to neatly organize cables from the monitor.

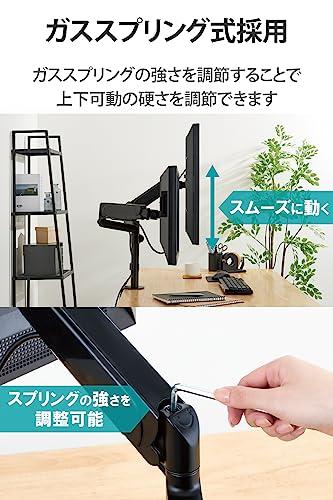

This product features smooth movement after mounting. You can adjust the stiffness of the vertical movement by regulating the strength of the gas spring.
It meets at least one of our internal environmental standards and displays the 'THINK ECOLOGY' mark.
Committed to environmental conservation, the product's packaging consists only of paper, cardboard, and plastic bags.

Inquiries about this product
ELECOM General Information Center
TEL. 0570-084-465
FAX. 0570-050-012
Reception hours / 10:00~19:00, open year-round, brand introduction
Creating more enjoyable, comfortable, and innovative products

ELECOM Inc. aims to enrich and make our customers' lifestyles more comfortable through peripheral devices such as smartphones, tablets, and computers.


Monitor arm

Access the store


Monitor arm Notebook PC stand

Access the store


Display stand

Access the store



We strive to create products and services that are more enjoyable, comfortable, and full of ingenuity. Based on the philosophy of 'Creating high-value-added products and services to deliver joy to customers worldwide,' we release over 2,000 products annually. Manufacturer's description.

Can be used to expand desk space.

Gas spring dual monitor arm with pole, compatible with 17~32 inch monitors, allowing free movement of monitor position.

Cannot be installed on thin, hollow, uneven, sloped, or fragile surfaces such as glass desks.

Devices exceeding the load capacity or supported size cannot be installed. Please check the size and weight of your device.

Can make the desk more spacious.

You can make effective use of the space under the monitor and use the desk more broadly. It is a dual arm type that can accommodate 2 monitors.

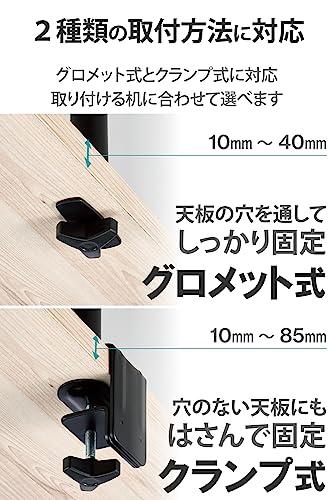

Selectable mounting methods.

You can choose between clamp fixing on the desk surface or fixing through a hole in the desk with a grommet.

Supported desk surface size.

Grommet type / A: 10-40mm

Clamp type / A: 10-85mm

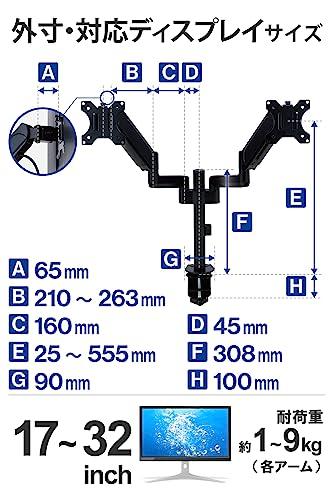

External dimensions.


A: 65mm / B: 210-263mm / C: 160mm / D: 45mm / E: 25-55.5cm / F: 308mm / G: 90mm / H: 100mm

I: 45mm

J: 103mm / K: 63mm / L: 5mm / M: 5mm

Weight: approximately 4.76kg
