Code:4549550286749

Brand:ELECOM

Specification:DPA-SS08BK

Product Color: Black

About this product

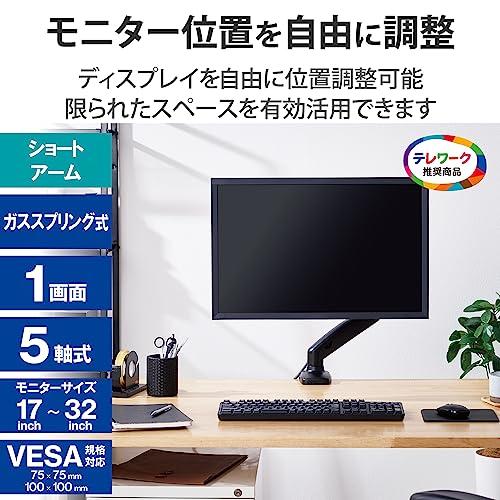

This is a gas spring single monitor arm compatible with monitors from 17 to 32 inches in size.
You can make effective use of the space under the monitor and use the desk more broadly.
It is a gas spring type that can be moved with light force.
You can freely move the monitor to your preferred position.
It is a single arm type that can hold one monitor.
It is a five-axis movable arm type with a wide range of motion.
It supports monitors compliant with VESA standards (75mm 75mm, 100mm 100mm).
Attachment type to increase the number of displays, tabletop mount
Movement type: tiltable, rotatable
Brand: ELECOM
Material: Aluminum
Max compatible size: 32 inches
Color: Black
Minimum compatible size: 17 inches
Supported devices: TV, Monitor
Manufacturer: ELECOM
About this product
This is a gas spring single monitor arm compatible with monitors from 17 to 32 inches in size.
You can make effective use of the space under the monitor and use the desk more broadly.
It is a gas spring type that can be moved with light force.
You can freely move the monitor to your preferred position.
It is a single arm type that can hold one monitor.
It is a five-axis movable arm type with a wide range of motion.
It supports monitors compliant with VESA standards (75mm 75mm, 100mm 100mm).
Increase the number of displays

Shipping size: Height 40.7mm, Width 29.6mm, Depth 12.4mm

Shipping weight: 2660g

Specifications
Supported size: 17~32 inches
Load capacity: approximately 2~9kg
Dimensions: Width approximately 117mm, Depth approximately 468mm, Height approximately 570mm
Weight: approximately 2.05kg
Color: Black
Number of screens to mount: 1
Material: Steel, Aluminum alloy, ABS
Movable method: Gas spring

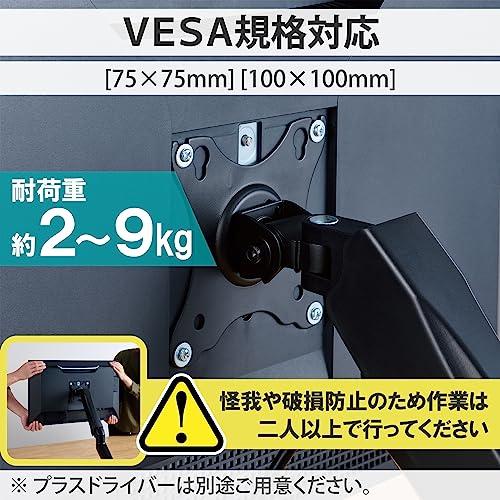

Supported standards: VESA standards (75mm 75mm, 100mm 100mm)

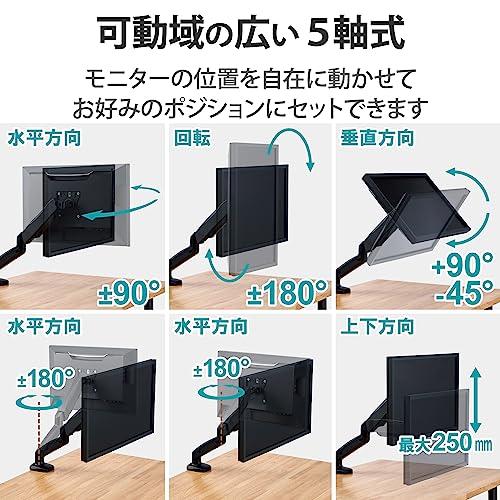

Range of motion: Pan: 90° left / 90° right, Rotation: 360°, Tilt: 90° up / 45° down
Maximum thickness of mounting surface: Clamp (fixed by pinching): 10~85mm, Grommet (fixed through hole): 10~85mm
Fixing method: Clamp type / Grommet type
Number of axes: 5 axes
Set contents: Arm 1, Clamp plate 1, Clamp 1, Upper plate for grommet 1, Wing nut 1, Bolt for grommet 1, Lower plate for grommet 1
Set contents: Screws 2, Flat screws 3, Small Allen wrench 1, Large Allen wrench 1, Screws (M4 12) 4, Screws (M5 12) 4, Washers 4

Description
This is a gas spring single monitor arm compatible with monitors from 17 to 32 inches in size.
You can make effective use of the space under the monitor and use the desk more broadly.
It is a gas spring type that can be moved with light force.
You can freely move the monitor to your preferred position.
It is a single arm type that can hold one monitor.
It is a five-axis movable arm type with a wide range of motion.
It supports monitors compliant with VESA standards (75mm 75mm, 100mm 100mm).
You can choose between two installation methods: clamp type that fixes by pinching the desk top, and grommet type that fixes by passing a bolt through a hole in the desk top.
Attach screws to the back of the monitor, hook the screw part from below onto the VESA mount attached to the arm, and fix the position.
Once the monitor's angle is decided, tighten the connecting screws firmly to fix.
Includes an arm-integrated cable holder to neatly organize cables from the monitor.

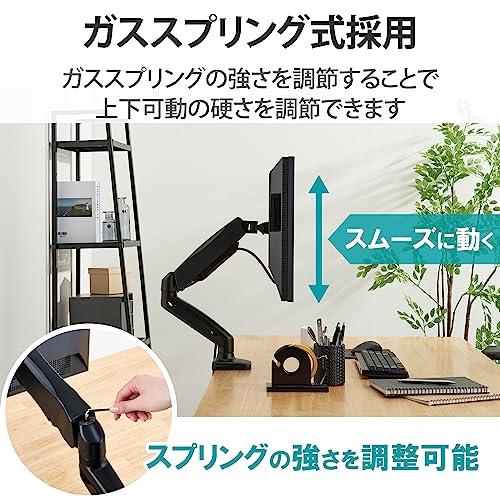

This product features smooth movement after mounting the monitor. You can adjust the stiffness of vertical movement by regulating the gas spring strength.

Inquiries about the product
ELECOM General Information Center
TEL. 0570-084-465
FAX. 0570-050-012
Reception hours / 10:00~19:00, open year-round, Brand introduction
Creating more enjoyable, more comfortable, and innovative products

ELECOM Inc. is committed to enriching and making our customers' lifestyles more comfortable through peripheral devices such as smartphones, tablets, and computers.


Monitor arm

Access the store


Monitor arm Notebook PC stand

Access the store


Display stand

Access the store



We strive to create products and services that are more enjoyable, more comfortable, and full of ingenuity. Based on the idea of "creating high-value-added products and services to deliver joy to customers worldwide," we release over 2,000 products annually. Manufacturer's description
Can be used to expand the desk space

This is a gas spring single monitor arm that allows you to freely move the monitor to your preferred position.

Note: Cannot be installed on thin, hollow, uneven, sloped, or easily breakable surfaces such as glass desks.

Cannot install equipment exceeding the load capacity and supported size. Please check the size and weight of the equipment.

Allows for a broader use of the desk

You can make effective use of the space under the monitor and use the desk more broadly. It is a single arm type that can hold one monitor.

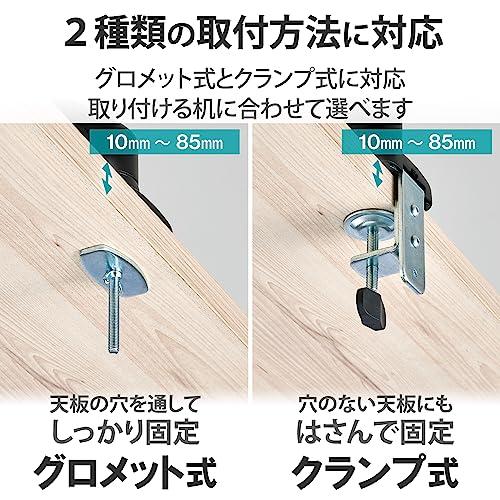

Selectable mounting methods

You can choose between two installation methods: clamp type that fixes by pinching the desk top, and grommet type that fixes by passing a bolt through a hole in the desk top.

Supported desk top size

Grommet type / A: 10~85mm

Clamp type / A: 10~85mm

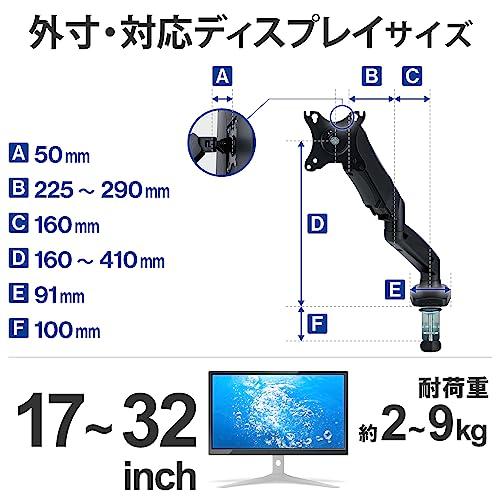

External dimensions


A: 50mm / B: 225~290mm / C: 160mm / D: 160~410mm / E: 91mm / F: 100mm

G: 108mm / H: 60mm / I: 5mm / J: 5mm

Weight: approximately 2.05kg
