Code: 4549550339018

Brand: Elecom (ELECOM)

Model: ECLD-OCM/WH70

Product color: White

Size information: 7m

About this product
This is a mesh type LAN cable compliant with Cat8, which is suitable for high-speed optical communication and conforms to the 40GBASE-T standard for 40 gigabit Ethernet.

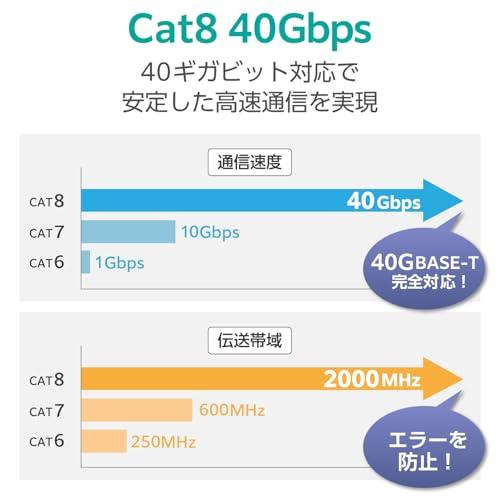

It supports high-frequency bandwidth up to 2000MHz, which is 8 times that of Cat6, and is resistant to noise interference, enabling a high-speed and stable network environment.
Ensures stable data transfer speeds in environments of 10BASE-T/100BASE-TX/1000BASE-T/1000BASE-TX/10GBASE-T/40GBASE-T.
Supports transmission bandwidth of 2000MHz, preventing reduction in transmission speed caused by connecting multiple devices.

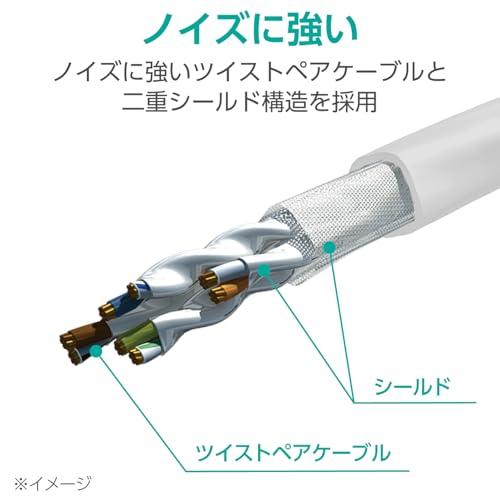

Adopts a double-shielded structure to prevent noise interference (alien crosstalk) between adjacent cables, which is common in high-speed communications exceeding gigabit levels.
› See more brands Elecom (ELECOM)
Connector type: RJ45
Cable type: Ethernet
Supported devices: Router, desktop computer, laptop
Features: High speed, about this product
This is a mesh type LAN cable compliant with Cat8, suitable for high-speed optical communication and conforming to the 40GBASE-T standard for 40 gigabit Ethernet.
It supports high-frequency bandwidth up to 2000MHz, which is 8 times that of Cat6, and is resistant to noise interference, enabling a high-speed and stable network environment.
It ensures stable data transfer speeds in environments of 10BASE-T/100BASE-TX/1000BASE-T/1000BASE-TX/10GBASE-T/40GBASE-T.
Supports transmission bandwidth of 2000MHz, preventing reduction in transmission speed caused by connecting multiple devices.
Adopts a double-shielded structure to prevent noise interference (alien crosstalk) between adjacent cables, which is common in high-speed communications exceeding gigabit levels.
› See more

Shipping size: Height 20.6cm, Width 19.4cm, Depth 3cm

Shipping weight: 190g

Specifications
Standard: Cat8 (10BASE-T/100BASE-TX/1000BASE-T/1000BASE-TX/10GBASE-T/40GBASE-T)
Maximum transmission speed: 40Gbps
Transmission bandwidth: 2000MHz
Interface: RJ45 connector
Connector presence: Both ends with connectors
Number of cores: 8 cores
Conductor configuration: Stranded wire (30AWG)
Wiring method: Straight wiring
Stranded wire (twisted pair cable):
Shielding:
Cross spacer:
Molded connector:
Slim connector:
Connector with claw-breaking cover:
Length mark:
PoE:
Cable type: Mesh type
Cable length: approximately 7m, excluding connectors
Cable diameter: approximately 5.2mm
Color: White
Packaging: Bag + seal
Environmental considerations: Compliant with EU RoHS Directive (10 substances), THINK ECOLOGY mark

Description
This is a mesh type LAN cable compliant with Cat8, suitable for high-speed optical communication and conforming to the 40GBASE-T standard for 40 gigabit Ethernet.
It supports high-frequency bandwidth up to 2000MHz, which is 8 times that of Cat6, and is resistant to noise interference, enabling a high-speed and stable network environment.
It ensures stable data transfer speeds in environments of 10BASE-T/100BASE-TX/1000BASE-T/1000BASE-TX/10GBASE-T/40GBASE-T.
Supports transmission bandwidth of 2000MHz, preventing reduction in transmission speed caused by connecting multiple devices.
Adopts a double-shielded structure to prevent noise interference (alien crosstalk) between adjacent cables, which is common in high-speed communications exceeding gigabit levels.
Excellent shielding effect, suitable for installation in medical facilities, machine rooms, OA rooms where EMI (electromagnetic interference) countermeasures are required.

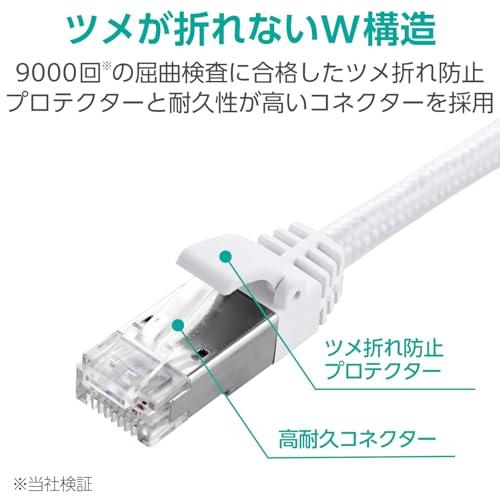

Features a double structure with a claw-breaking protector and a highly durable connector against bending, making it a LAN cable less likely to have claws broken. Passed 9000 bending tests (company verification).
Prevents cable disconnection caused by claw breakage and can securely fix the cable to the LAN port over the long term.

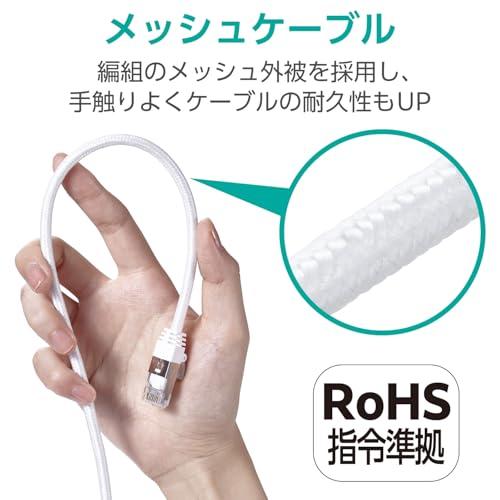

Uses a braided mesh outer sheath, providing a good tactile feel and increasing durability.
Compared to single wire, it is softer and easier to handle, with stranded wire specifications.
The outer sheath of the cable uses flame-retardant material that is less likely to cause fire spread, compliant with "JIS C 3005" standards.
Conforms to TIA-568-C standards.
Environmentally friendly product compliant with EU RoHS Directive (10 substances) (restriction of certain hazardous substances in electrical and electronic equipment).
Product that meets at least one of our environmental certification standards and displays the "THINK ECOLOGY" mark.
A product committed to environmental conservation, with packaging consisting only of paper, cardboard, and plastic bags.

Inquiries about the product
Elecom General Information Center
TEL. 0570-084-465
FAX. 0570-050-012
Reception hours / 10:00~19:00, open year-round Brand introduction


AC charger

Access store


Power strip

Access store


Mobile battery

Access store


Mouse

Access store


Keyboard

Access store



Elecom Co., Ltd. is committed to enriching and making our customers' lifestyles more comfortable through peripheral devices such as smartphones, tablets, and PCs. Manufacturer's description

You can attach and detach the connector without worrying about claw breakage.

The connector, which withstands 1000 bends with a soft material, prevents cable disconnection caused by claw breakage.

Can be used for a wide range of purposes, including online gaming and video streaming.
