Code: 4549550338967

Brand: Elecom (ELECOM)

Model: ECLD-OCM/WH10

Product color: White

Size information: 1m

About this product
This is a mesh type LAN cable compliant with Cat8, which is suitable for high-speed optical communication and conforms to the 40GBASE-T standard for 40 gigabit Ethernet.

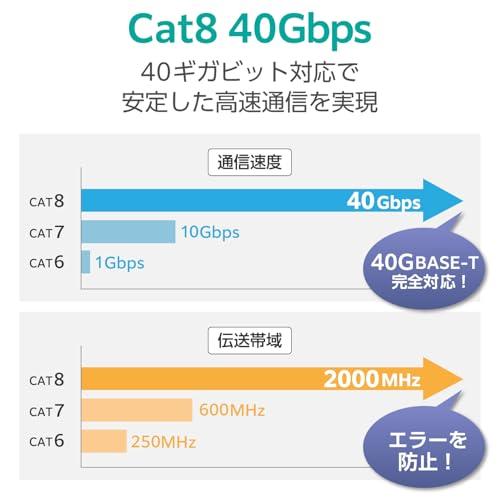

It supports high-frequency bandwidth up to 2000MHz, which is 8 times that of Cat6, and is resistant to noise interference, enabling a high-speed and stable network environment.
Ensures stable data transfer speeds in environments of 10BASE-T/100BASE-TX/1000BASE-T/1000BASE-TX/10GBASE-T/40GBASE-T.
Supports transmission bandwidth up to 2000MHz, preventing reduction in transmission speed caused by connecting multiple devices.

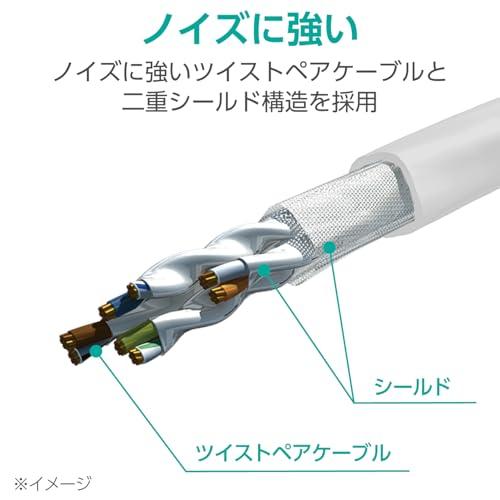

Adopts a double-shielded structure to prevent noise interference (alien crosstalk) between adjacent cables, which is common in high-speed communications exceeding gigabit speeds.
› See more brands ELECOM (ELECOM)
Connector type: RJ45
Cable type: Ethernet
Compatible devices: Router, desktop computer, laptop
Features: High speed, about this product
This is a mesh type LAN cable compliant with Cat8, suitable for high-speed optical communication and conforming to the 40GBASE-T standard for 40 gigabit Ethernet.
It supports high-frequency bandwidth up to 2000MHz, which is 8 times that of Cat6, and is resistant to noise interference, enabling a high-speed and stable network environment.
It ensures stable data transfer speeds in environments of 10BASE-T/100BASE-TX/1000BASE-T/1000BASE-TX/10GBASE-T/40GBASE-T.
Supports transmission bandwidth up to 2000MHz, preventing reduction in transmission speed caused by connecting multiple devices.
Adopts a double-shielded structure to prevent noise interference (alien crosstalk) between adjacent cables, which is common in high-speed communications exceeding gigabit speeds.
› See more

Shipping size: Height 19.6cm, Width 12.5cm, Depth 1.7cm

Shipping weight: 40g

Specifications
Standard: Cat8 (10BASE-T/100BASE-TX/1000BASE-T/1000BASE-TX/10GBASE-T/40GBASE-T)
Maximum transmission speed: 40Gbps
Transmission bandwidth: 2000MHz
Interface: RJ45 connector
Connector presence: Both ends with connectors
Number of cores: 8 cores
Conductor configuration: Stranded wire (30AWG)
Wiring method: Straight wiring
Stranded wire (twisted pair cable):
Shielding:
Crossing material:
Molded connector:
Slim connector:
Connector with claw-breaking prevention cover:
Length mark included:
PoE:
Cable type: Mesh type
Cable length: Approximately 1m, excluding connectors
Cable thickness: Approximately 5.2mm
Color: White
Packaging: Bag + seal
Environmental considerations: Compliant with EU RoHS Directive (10 substances), THINK ECOLOGY mark

Description
This is a mesh type LAN cable compliant with Cat8, suitable for high-speed optical communication and conforming to the 40GBASE-T standard for 40 gigabit Ethernet.
It supports high-frequency bandwidth up to 2000MHz, which is 8 times that of Cat6, and is resistant to noise interference, enabling a high-speed and stable network environment.
It ensures stable data transfer speeds in environments of 10BASE-T/100BASE-TX/1000BASE-T/1000BASE-TX/10GBASE-T/40GBASE-T.
Supports transmission bandwidth up to 2000MHz, preventing reduction in transmission speed caused by connecting multiple devices.
Adopts a double-shielded structure to prevent noise interference (alien crosstalk) between adjacent cables, which is common in high-speed communications exceeding gigabit speeds.
It has excellent shielding effects and is suitable for installation in medical facilities and machine rooms where EMI (electromagnetic interference) countermeasures are required.

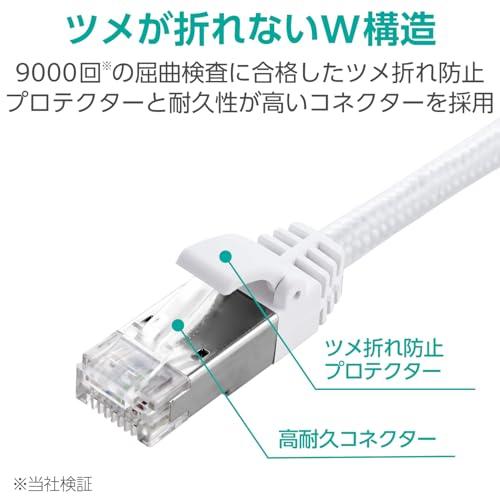

Features a double structure with a claw-breaking prevention protector and a highly durable connector resistant to bending, making it a LAN cable less likely to have claws broken. It has passed 9000 bending tests (company verification).
Prevents cable disconnection caused by claw breakage and can securely fix the cable to the LAN port for long-term use.

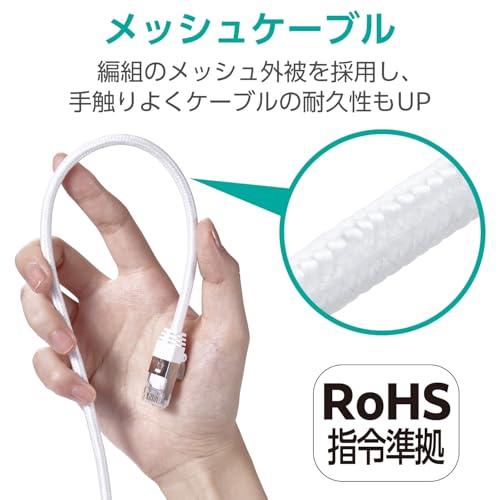

Uses a braided mesh outer sheath, providing a good tactile feel and increasing durability.
Compared to single wire, it is softer and easier to handle, with stranded wire specifications.
The outer sheath of the cable uses flame-retardant material that complies with "JIS C 3005," making it less likely to cause fire spread.
Conforms to TIA-568-C standards.
Environmentally friendly product compliant with EU RoHS Directive (10 substances) (restriction of certain hazardous substances in electrical and electronic equipment).
A product that meets at least one of our environmental certification standards and displays the "THINK ECOLOGY" mark.
A product committed to environmental conservation, with packaging made only of paper, cardboard, or plastic bags.
