Code: 4549550338974

Brand: Elecom (ELECOM)

Standard: ECLD-OCM/WH100

Product color: White

Size information: 10m

About this product
This is a mesh type LAN cable compliant with Cat8, which conforms to the 40GBASE-T standard suitable for high-speed optical communication.

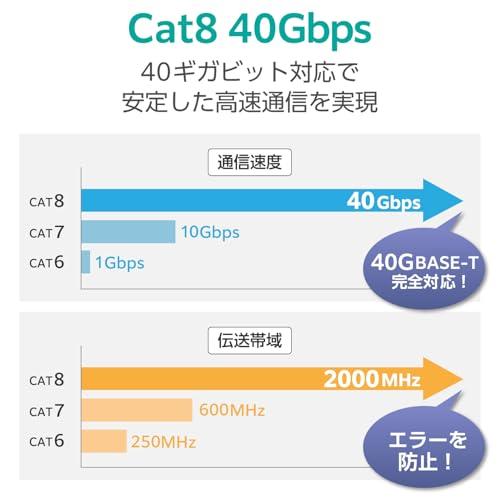

It supports high-frequency bandwidth up to 2000MHz, which is 8 times that of Cat6, and is resistant to noise interference, enabling a high-speed and stable network environment.
Ensures stable data transfer speeds in environments of 10BASE-T/100BASE-TX/1000BASE-T/1000BASE-TX/10GBASE-T/40GBASE-T.
Supports transmission bandwidth of 2000MHz, preventing reduction in transmission speed caused by connecting multiple devices.

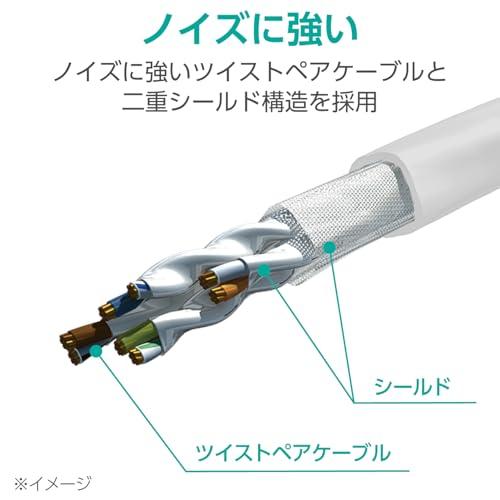

Adopts a double-shielded structure to prevent noise interference (alien crosstalk) between adjacent cables, which is common in high-speed communications exceeding gigabit speeds.
› See more brands Elecom (ELECOM)
Connector type: RJ45
Cable type: Ethernet
Compatible devices: Router, desktop PC, laptop
Features: High speed About this product
This is a mesh type LAN cable compliant with Cat8, conforming to the 40GBASE-T standard suitable for high-speed optical communication.
It supports high-frequency bandwidth up to 2000MHz, which is 8 times that of Cat6, and is resistant to noise interference, enabling a high-speed and stable network environment.
It ensures stable data transfer speeds in environments of 10BASE-T/100BASE-TX/1000BASE-T/1000BASE-TX/10GBASE-T/40GBASE-T.
Supports transmission bandwidth of 2000MHz, preventing reduction in transmission speed caused by connecting multiple devices.
Uses a double-shielded structure to prevent noise interference (alien crosstalk) between adjacent cables, which is common in high-speed communications exceeding gigabit speeds.
› See more

Shipping size: Height 20.6cm, Width 19.4cm, Depth 3.7cm

Shipping weight: 250g

Specifications
Standard: Cat8 (10BASE-T/100BASE-TX/1000BASE-T/1000BASE-TX/10GBASE-T/40GBASE-T)
Maximum transmission speed: 40Gbps
Transmission bandwidth: 2000MHz
Interface: RJ45 connector
Connector presence: Both ends with connectors
Number of cores: 8 cores
Conductor configuration: Stranded wire (30AWG)
Wiring method: Straight wiring
Stranded wire (twisted pair cable):
Shielding:
Crossing material:
Molded connector:
Slim connector:
Connector with claw-breaking prevention cover:
With length mark:
PoE:
Cable type: Mesh type
Cable length: Approximately 10m, excluding connectors
Cable diameter: Approximately 5.2mm
Color: White
Packaging: Bag + seal
Environmental considerations: Compliant with EU RoHS Directive (10 substances), THINK ECOLOGY mark

Description
This is a mesh type LAN cable compliant with Cat8, conforming to the 40GBASE-T standard suitable for high-speed optical communication.
It supports high-frequency bandwidth up to 2000MHz, which is 8 times that of Cat6, and is resistant to noise interference, enabling a high-speed and stable network environment.
It ensures stable data transfer speeds in environments of 10BASE-T/100BASE-TX/1000BASE-T/1000BASE-TX/10GBASE-T/40GBASE-T.
Supports transmission bandwidth of 2000MHz, preventing reduction in transmission speed caused by connecting multiple devices.
Uses a double-shielded structure to prevent noise interference (alien crosstalk) between adjacent cables, which is common in high-speed communications exceeding gigabit speeds.
Excellent shielding effect, suitable for installation in medical facilities, machine rooms, OA rooms where EMI (electromagnetic interference) countermeasures are required.

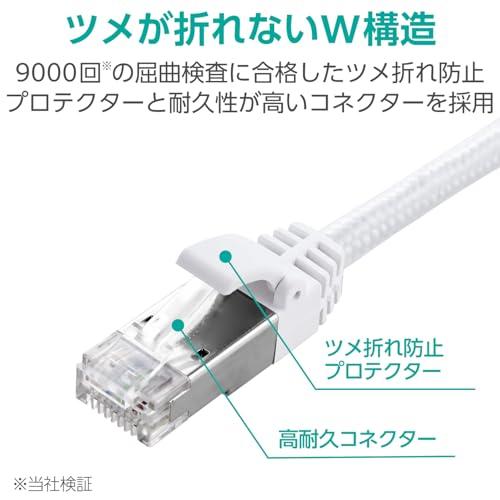

Adopts a double structure with a claw-breaking prevention protector and a highly durable connector against bending, making it a LAN cable less likely to have claws broken. Passed 9000 bending tests (company verification).
Prevents cable disconnection due to claw breakage and can securely fix the cable to the LAN port over the long term.

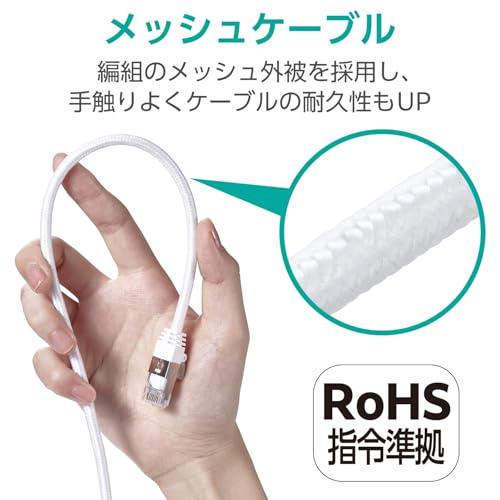

Features a braided mesh outer sheath that feels good to the touch and increases durability.
Compared to single wire, it is softer and easier to handle, with stranded wire specifications.
The outer sheath of the cable uses flame-retardant material that is less likely to cause fire spread, compliant with "JIS C 3005".
Conforms to TIA-568-C standards.
Environmentally friendly product compliant with EU RoHS Directive (10 substances) (restriction of certain hazardous substances in electrical and electronic equipment).
Product that meets at least one of our environmental certification standards and displays the "THINK ECOLOGY" mark.
A product committed to environmental preservation, with packaging made only of paper, cardboard, and polybags.
