Code: 4549550331807

Brand: Elecom (ELECOM)

Model: ECLD-GPASSTBK50

Product color: Black

Size information: 5m

About this product
This is a slim type Cat6A LAN cable that supports 10 Gigabit Ethernet, guaranteeing a frequency band of 500MHz. It features a slim cable with a diameter of approximately 3.0mm suitable for wiring in narrow spaces, and connectors that are less likely to break their claws. It has passed 1000 bend tests (verified by our company).
This is a Cat6A LAN cable slim type that supports 10GBASE-T, suitable for high-speed optical communication and 10 Gigabit Ethernet.
It uses connectors made of highly durable materials against bending, and is a LAN cable with claws that are less likely to break. It has passed 1000 bend tests (verified by our company).
Prevents cable disconnection caused by broken claws and can securely fix to LAN ports over the long term.

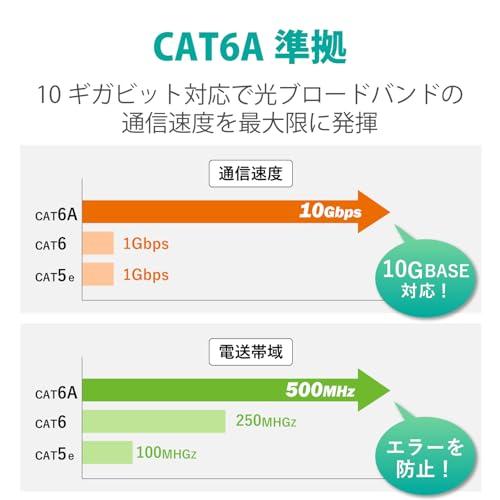

Supports high-frequency band up to 500MHz, twice that of Cat6, and is resistant to noise interference, enabling a high-speed and stable network environment.
› See more brands ELECOM (ELECOM)
Connector type: RJ45
Cable type: Ethernet
Compatible devices: PC, router, switch, modem, server, network-compatible printer
Features: High speed, about this product
This is a slim type Cat6A LAN cable that supports 10GBASE-T, guaranteeing a frequency band of 500MHz. It features a slim cable with a diameter of approximately 3.0mm suitable for wiring in narrow spaces, and connectors that are less likely to break their claws. It has passed 1000 bend tests (verified by our company).
This is a Cat6A LAN cable slim type that supports 10GBASE-T, suitable for high-speed optical communication and 10 Gigabit Ethernet.
It uses connectors made of highly durable materials against bending, and is a LAN cable with claws that are less likely to break. It has passed 1000 bend tests (verified by our company).
Prevents cable disconnection caused by broken claws and can securely fix to LAN ports over the long term.
Supports high-frequency band up to 500MHz, twice that of Cat6, and is resistant to noise interference, enabling a high-speed and stable network environment.
› See more

Shipping size: Height 22mm, Width 15.1mm, Depth 1.4mm

Shipping weight: 70g

Specifications
Color: Black
Transmission speed: Max 10Gbps
Interface: RJ45 connector
Environmental considerations: Compliant with EU RoHS Directive (10 substances)
Standard: Cat6A (10GBASE-T / 1000BASE-TX / 1000BASE-T / 100BASE-TX / 10BASE-T)
Transmission bandwidth: 500MHz
Cable length: Approximately 5m, excluding connectors
Wiring method: Straight wiring
Twisted pair cable with stranded conductors:
Shielding: None (UTP specification)
Crossing material:
Outer sheath (covering) material: PVC
Conductor configuration: Stranded wire (30AWG)
Connectors included: Both ends with connectors
Slim connector:
Connector with no claws:
Connector with claw break prevention cover:
Cable retraction function:
Package format: Aluminum foil bag + sticker
Cable thickness: Approximately 3.0mm
Number of cores: 8 cores
With length mark:
Molded connector:

Description
This is a slim type Cat6A LAN cable that supports 10GBASE-T, guaranteeing a frequency band of 500MHz, suitable for high-speed optical communication.
It uses connectors made of highly durable materials against bending, and is a LAN cable with claws that are less likely to break. It has passed 1000 bend tests (verified by our company).
Prevents cable disconnection caused by broken claws and can securely fix to LAN ports over the long term.
Supports high-frequency band up to 500MHz, twice that of Cat6, and is resistant to noise interference, enabling a high-speed and stable network environment.
Employs a slim cable with a diameter of approximately 3.0mm suitable for wiring in narrow spaces.
Since it is a stranded wire specification without cross insertion, it is soft and easy to handle, making installation in narrow spaces easier.
Adopts a short connector that is about 40% more compact than previous models, preventing interference with adjacent ports and not protruding, compared to the LD-GPA series.
This product complies with the EU RoHS Directive (restriction of certain hazardous substances in electrical and electronic equipment) (10 substances), making it environmentally friendly.
It meets at least one of our company's environmental certification standards and displays the 'THINK ECOLOGY' mark.
Engages in environmental conservation, and the product's packaging container consists only of paper, cardboard, and polybags.

Inquiries about the product
Elecom General Information Center
TEL. 0570-084-465
FAX. 0570-050-012
Reception hours / 10:00~19:00, open year-round Brand introduction
