Code:4549550171601

Brand: Elecom (ELECOM)

Standard: LD-GPAL/BU300RS

Product color: Blue / 300m

Size information: 300m

Product weight: 14400

About this product
This is a custom-length LAN cable compatible with 10 Gigabit Ethernet that guarantees a frequency band of 500MHz, compliant with Cat6A. By using a dedicated stripping tool and connector, you can manufacture your own LAN cable. It adopts a single wire cable with less attenuation over long distances. The connector is not included.
It supports a high-frequency band up to 500MHz, twice that of Cat6, making it resistant to noise interference and enabling a high-speed, stable network environment.
It is a single wire specification with less attenuation over long distances and is a cable-only type without connectors.
It complies with the EU RoHS Directive (restriction of hazardous substances in electrical and electronic equipment) (10 substances), making it an environmentally friendly product.
Inserting a cross filler inside the cable prevents signal interference and ensures stable data transfer.

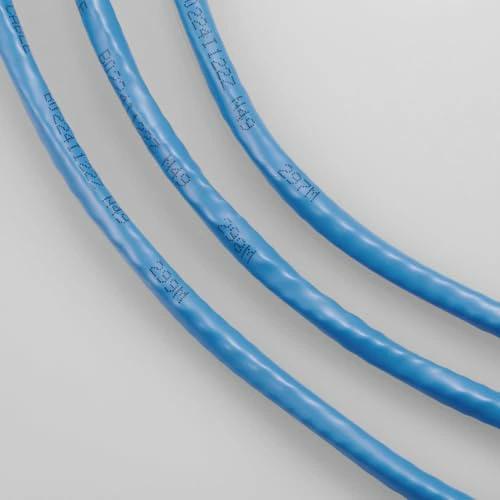

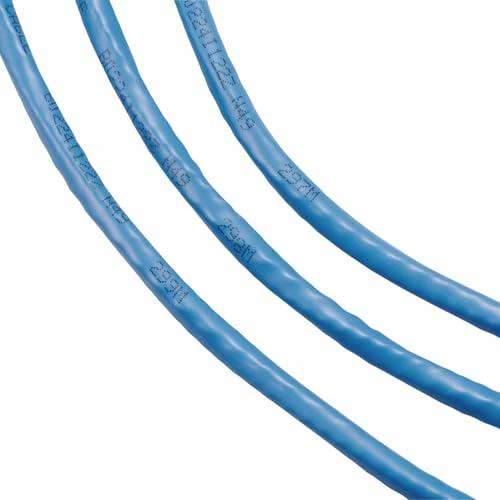

It features length marks to indicate remaining length. The length mark is an estimate of the remaining length.
Compatible with PLC, ADSL lines, CATV lines, optical communication lines, and ISDN lines.
Increases the number of display items, Brand: Elecom (ELECOM)
Connector type: LAN
Cable type: Ethernet
Compatible devices: Devices with LAN ports
Features: Next-generation 10 Gigabit Ethernet supporting transmission bandwidth up to 500MHz, achieving a high-speed and stable network environment. This is a category 6A compatible custom-length LAN cable. About this product
This is a custom-length LAN cable compatible with 10 Gigabit Ethernet that guarantees a frequency band of 500MHz, compliant with Cat6A. By using a dedicated stripping tool and connector, you can manufacture your own LAN cable. It adopts a single wire cable with less attenuation over long distances. The connector is not included.
It supports a high-frequency band up to 500MHz, twice that of Cat6, making it resistant to noise interference and enabling a high-speed, stable network environment.
It is a single wire specification with less attenuation over long distances and is a cable-only type without connectors.
It complies with the EU RoHS Directive (restriction of hazardous substances in electrical and electronic equipment) (10 substances), making it an environmentally friendly product.
Inserting a cross filler inside the cable prevents signal interference and ensures stable data transfer.
It features length marks to indicate remaining length. The length mark is an estimate of the remaining length.
Compatible with PLC, ADSL lines, CATV lines, optical communication lines, and ISDN lines.
Increase the number of display items

Shipping size: Height 34.4, Width 33.7, Depth 27

Shipping weight: 15820

Specifications
Standard: Compatible with Cat6A (supports 10GBASE-T / 1000BASE-TX / 1000BASE-T / 100BASE-TX / 10BASE-T)
Transmission speed: 10Gbps
Transmission bandwidth: up to 500MHz
Cable length: approximately 300m
Cable diameter: approximately 6.2mm
Number of cores: 8 cores
Shielding: None (UTP specification)
Cross filler:
Outer sheath (coating) material: PVC
With length mark:
Color: Blue
Conductor configuration: Single wire (AWG23)
Conductor diameter: approximately 0.58mm (AWG23)
Connector presence: None (cable only)
Molded connector:
Slim connector:
Connector with claw-breaking prevention cover:
Cable winding function:

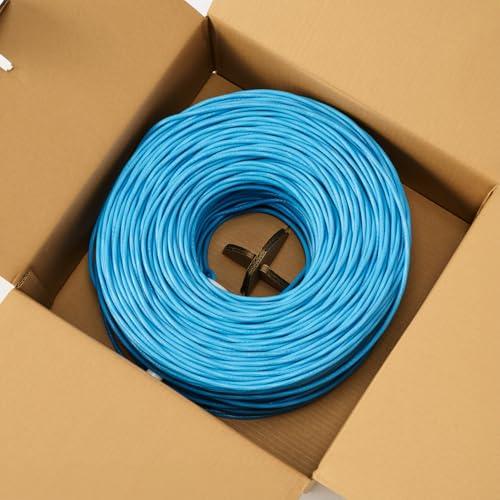

Packaging: Cardboard box (drum winding)
Environmental considerations: Complies with EU RoHS Directive (10 substances)
PoE: (PoE/PoE+) up to 100m
Compatible connectors: LD-6RJ45T10, LD-6RJ45T100

Description
This cable supports a high-frequency band up to 500MHz, twice that of Cat6, and is resistant to noise interference, providing a high-speed, stable network environment.
It is a single wire specification with less attenuation over long distances and is a cable-only type without connectors.
It complies with the EU RoHS Directive (restriction of hazardous substances in electrical and electronic equipment) (10 substances), making it an environmentally friendly product.
Inserting a cross filler inside the cable prevents signal interference and ensures stable data transfer.
It features length marks to indicate remaining length. The length mark is an estimate of the remaining length.
Compatible with PLC, ADSL lines, CATV lines, optical communication lines, and ISDN lines.
A box-type relay length that is convenient for creating the necessary length of LAN cable. The cable is less likely to tangle and is suitable for small portions of use.
Adopts a soft material for the claws to prevent disconnection due to claw breakage during attachment/detachment.
The colorful core wire makes identification easy and facilitates processing.
Compatible connectors are LD-6RJ45T10 (10 pieces) and LD-6RJ45T100 (100 pieces).
This product's packaging container consists only of paper, cardboard, and polybags.

Inquiries about the product
Elecom General Information Center
TEL. 0570-084-465
FAX. 0570-050-012
Reception hours / 10:00~19:00, open year-round, brand introduction
