Code: 4549550349970

Brand: Elecom (ELECOM)

Model: DH-SW8KB31BK/E

Product color: Black

Product weight: 128

About this product
Enjoy 8K video with smooth switching. This switcher allows you to connect three HDMI(R) devices and enjoy movies and games by switching on a single display. It eliminates the hassle of insufficient HDMI ports and unplugging cables, and can be operated easily with a remote control. You can enjoy high-quality, high-frame-rate images at up to 8K60Hz/4K120Hz. It features a metal case with high heat dissipation performance.

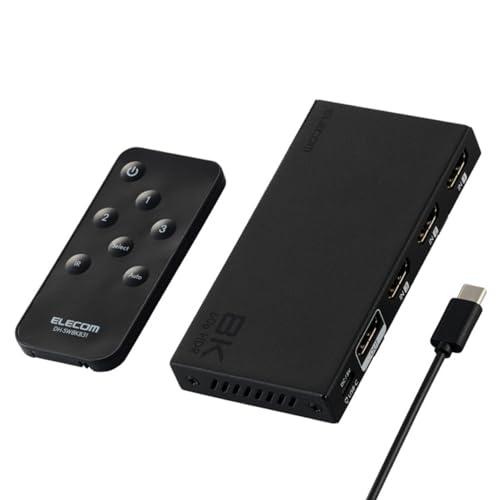

Switching of ports can be done using the main unit's button or the included remote control. Operation from a remote location is also possible.
The method of switching signals output to the monitor can be selected between automatic (auto mode), which requires no operation, or manual (manual mode), which switches without worry of automatic switching.

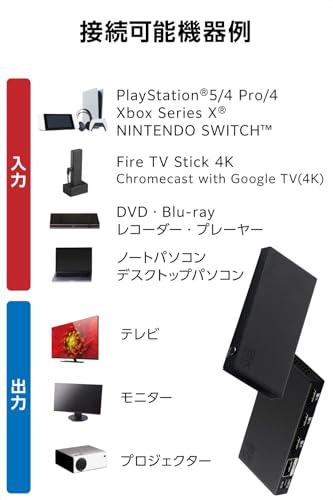

Compatible with connecting game consoles, DVD/Blu-ray recorders, and players. Verified to work with PlayStation(R) 5/4 Pro/4, Xbox Series X(R), NINTENDO SWITCH(TM), Fire TV Stick 4K, Chromecast with Google TV(4K).
Supports up to 8K60Hz/4K120Hz. Can output high-quality, high-frame-rate images directly, allowing you to experience immersive visuals.
› See more Connectors: HDMI
Brand: Elecom (ELECOM)
Control method: Remote control
Color: Black
Number of items: 1, About this product
Enjoy 8K video with smooth switching. This switcher allows you to connect three HDMI(R) devices and enjoy movies and games by switching on a single display. It eliminates the hassle of insufficient HDMI ports and unplugging cables, and can be operated easily with a remote control. You can enjoy high-quality, high-frame-rate images at up to 8K60Hz/4K120Hz. It features a metal case with high heat dissipation performance.
Switching of ports can be done using the main unit's button or the included remote control. Operation from a remote location is also possible.
The method of switching signals output to the monitor can be selected between automatic (auto mode), which requires no operation, or manual (manual mode), which switches without worry of automatic switching.
Compatible with connecting game consoles, DVD/Blu-ray recorders, and players. Verified to work with PlayStation(R) 5/4 Pro/4, Xbox Series X(R), NINTENDO SWITCH(TM), Fire TV Stick 4K, Chromecast with Google TV(4K).
Supports up to 8K60Hz/4K120Hz. Can output high-quality, high-frame-rate images directly, allowing you to experience immersive visuals.
› See more

Shipping size: Height 18.2mm, Width 12.3mm, Depth 4.4mm

Shipping weight: 250g

Specifications
Maximum display resolution: 8K60Hz (7680x4320, 4:2:0, 8bit)
Main supported resolutions: 8K (7680x4320) 30Hz/60Hz, 4K (4096x2160) 30Hz/60Hz, 4K (3840x2160) 30Hz/60Hz/120Hz, 2K (1920x1080) 60Hz, 1080i/720p/576p/576i/480p/480i
HDMI standard: HDMI(R) 2.1
HDR: HDR10, Dolby Vision(R), HLG supported
Data rate: 48Gbps
Video bandwidth: 1200MHz
Supported video output devices (HDMI): AV equipment with HDMI output terminal, home game consoles, media streaming devices, PCs, etc.
Supported display devices: TVs, displays, projectors with HDMI input terminals, etc.

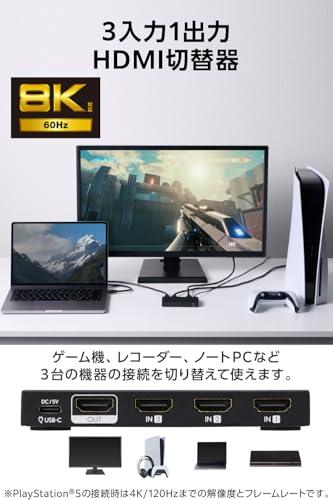

Number of ports: Input: 3 (HDMI), Output: 1 (HDMI)
Connector shape: Input: HDMI Type A 19-pin ports 3, Output: HDMI Type A 19-pin port 1, Power: USB Type-C(TM) port
Acceptable cable length (HDMI): HDMI cables within 5m on both input and output sides. For use with 4K HDR or 4K60Hz, please use our 'Premium HDMI Cable'. For 8K60Hz or 4K120Hz, use our 'Ultra High Speed HDMI Cable'.
HDCP: Supports HDCP 1.4/2.2/2.3
CEC (HDMI): Supported
ARC (HDMI): Not supported
HEC (HDMI): Not supported
Power: DC 5V/1A
Size: Width approximately 112.3mm, Depth approximately 56.6mm, Height approximately 14.5mm
Material: Metal
Weight: approximately 128g (main unit)
Accessories: Main unit power supply cable (USB-A to USB Type-C, approximately 1.0m, excluding connectors), 1, Main unit operation remote control (with batteries for operation check), 1
Operating temperature and humidity: Temperature: 0~40°C, Humidity: 10%~85% (no condensation)
Storage temperature and humidity: Temperature: -10~80°C, Humidity: 5%~90% (no condensation)
Warranty period: 1 year
Packaging: Paper box

Description
This switcher allows you to connect three HDMI(R) devices and enjoy movies and games on a single display by simply pressing a button.
Switching of ports can be done using the main unit's button or the included remote control. Operation from a remote location is also possible.
The method of switching signals output to the monitor can be selected between automatic (auto mode), which requires no operation, or manual (manual mode), which switches without worry of automatic switching.
Compatible with connecting game consoles, DVD/Blu-ray recorders, and players. Verified to work with PlayStation(R) 5/4 Pro/4, Xbox Series X(R), NINTENDO SWITCH(TM), Fire TV Stick 4K, Chromecast with Google TV(4K).
Supports up to 8K60Hz/4K120Hz. Can output high-quality, high-frame-rate images directly, allowing you to experience immersive visuals.
Confirmed to support resolutions and frame rates up to 4K/120Hz when connecting to PlayStation(R) 5.
Supports HDCP 1.4/2.2/2.3, enabling use with protected content such as 4K broadcasts and movies.
Supports DTS-HD Master Audio(TM), Dolby True HD. Enjoy high-quality sound for movies, music, and TV programs.
Supports 120fps high frame rate and VRR (Variable Refresh Rate). Can display smoother images. Reduces ghosting in fast-paced scenes such as action games and sports viewing.
With ALLM (Auto Low Latency Mode), video processing is rapid. Minimizes input delay, enabling faster and more accurate operations in FPS and action games.
Usable with Windows and macOS. Convenient for connecting and using two or more computers at work or home.
Does not guarantee operation with all devices.
Compact size that does not take up space even when installed around displays or TVs.
Features a metal case with high heat dissipation efficiency and noise resistance.
Displays the connected channel on the product's LED lamp, allowing you to check operation status at a glance.
Includes a USB-A to USB Type-C cable for powering the main unit.
HDMI input device cables and AC adapters are not included. Please prepare separately.
USB Type-C and USB-C are trademarks of the USB Implementers Forum.
This product meets at least one of our in-house environmental certification standards and displays the 'THINK ECOLOGY' mark.
Committed to environmental preservation, this product's packaging consists only of paper, cardboard, and plastic bags. Brand introduction
