Usually ships within 1-5 business days [New, Unopened Product]

[Specifications]
■Maximum display resolution: 4K60Hz (4096×2160)
■Main supported resolutions: 4K (4096×2160) 30Hz/60Hz, 4K (3840×2160) 30Hz/60Hz, 2K (1920×1080) 60Hz, 1080i/720p/576p/576i/480p/480i
■HDMI standard: HDMI2.0b
■HDR: Supports HDR10, Dolby Vision(R), HLG
■Data rate: 18Gbps
■Video frequency band: 600MHz
■Compatible video output devices: AV devices, home game consoles, media streaming devices, PCs, etc. equipped with HDMI output terminals
■Compatible video display devices: TVs, displays, projectors, etc. equipped with HDMI input terminals
■Number of ports: Input: 1, Output: 4
■Connector shape: Input: HDMI Type A 19-pin (female) x 1, Output: HDMI Type A 19-pin (female) x 4, Power: Micro-B connector x 1
■Allowable cable length: Within 5m for both input and output sides
■HDCP: HDCP1.4/2.2 compatible
■CEC: Supported only on OUTPUT1
■HEC: Not supported
■ARC: Not supported
■Cascade: Up to 2 stages
■Conforming standards: VCCI Class B
■AC adapter rating: DC 5V 0.6A
■AC adapter input voltage: 100V~240V
■Main unit material: Metal

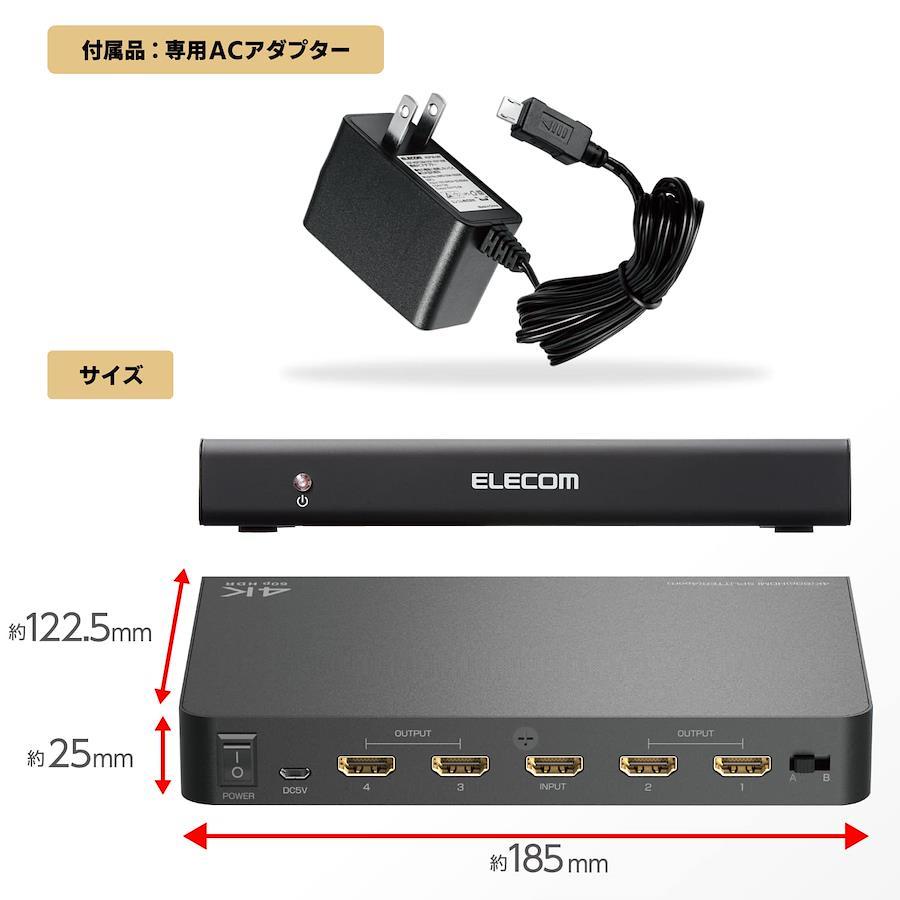

■Main unit size: Width approx. 185mm x Depth approx. 122.5mm x Height approx. 25mm
■Weight: Approx. 478g (main unit)
■Accessories: Dedicated AC adapter x 1, User's manual x 1
■Operating temperature/humidity: 5~40℃ Humidity 0~80% (non-condensing)
■Storage temperature/humidity: 20~60℃ Humidity 0~80% (non-condensing)
■Warranty period: 1 year

[Description]

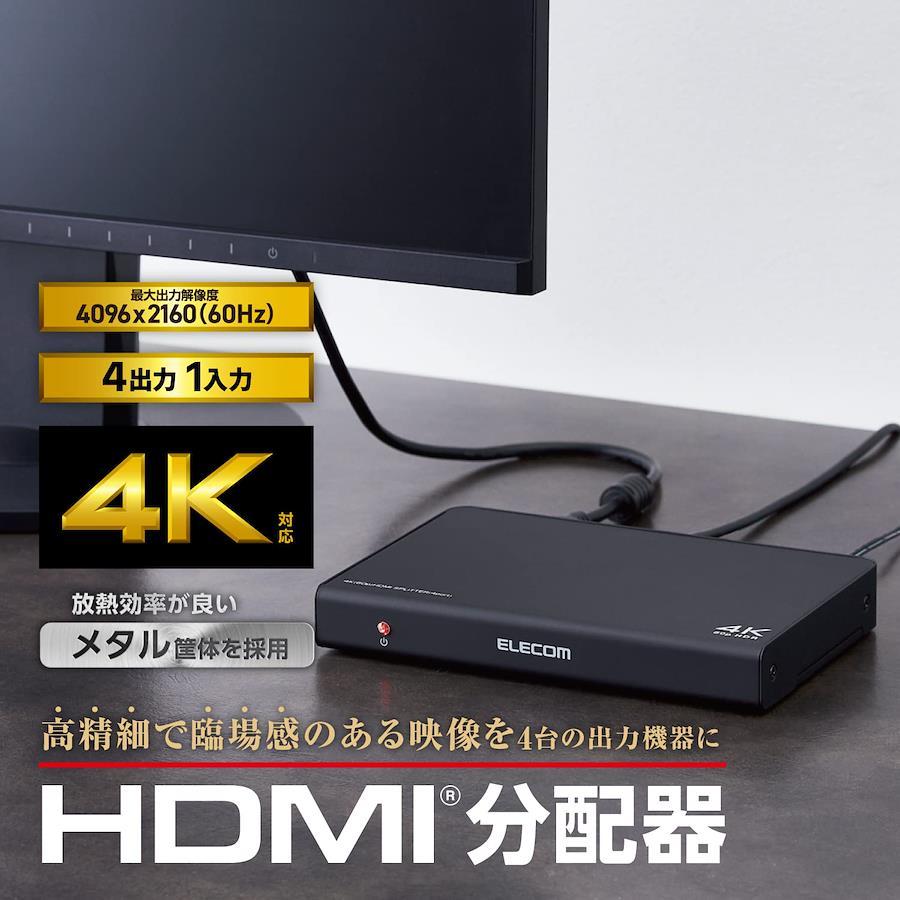

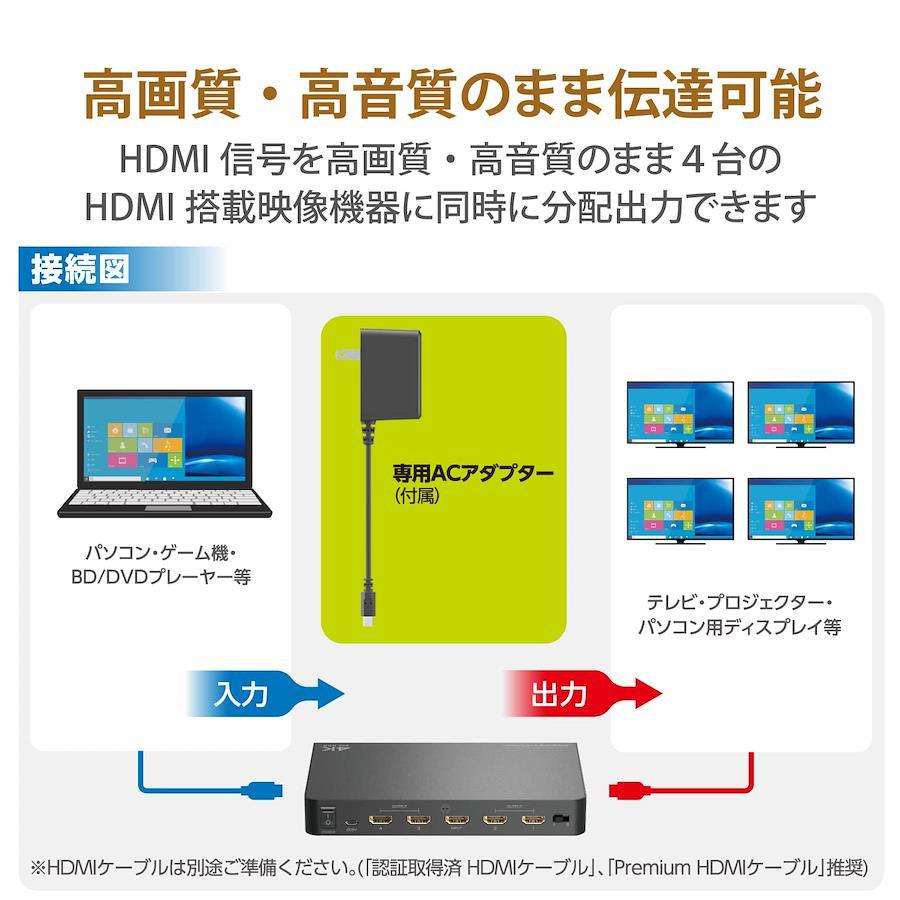

■HDMI signals from PCs, game consoles, etc. can be simultaneously distributed and output to 4 HDMI-equipped video devices such as displays and projectors while maintaining high image and sound quality. (CEC is supported only on OUTPUT1, ARC and HEC are not supported.) Operation on all devices is not guaranteed.
■Supports display output up to 4096×2160 60Hz resolution, allowing you to view photos and browse the web on a large, high-definition, immersive screen.
■Can be used for both mirroring and multi-display setups.
■Distributes beautiful images, enabling efficient presentations and making it ideal for demonstrations.
■Features a slim design that fits easily into any space, with a metal case that offers good heat dissipation and resistance to noise.
■The case size is the same as the previous model VSP-HD14BK, making it easy to replace.
■HDMI terminals are gold-plated for rust resistance and to prevent signal degradation.
■Supports HDR10, Dolby Vision(R), and HLG HDR content, enabling bright and beautiful video output.
■HDCP 1.4/2.2 compatibility allows you to enjoy copyright-protected content such as 4K broadcasts and movies.
■An AC adapter is included to ensure stable operation.
■Premium HDMI cables (HDMI standard certified products) up to 5m for each input/output port can be used.
■Equipped with an A/B mode switching switch. (Mode A outputs with common resolution and audio format, Mode B outputs with the resolution and audio format of the display connected to OUTPUT1)
■For customers considering corporate deployment, we recommend testing in your own environment before purchasing.
■This product meets at least one of our internal environmental certification standards and displays the 'THINK ECOLOGY' mark.
■This product is committed to environmental conservation and has reduced the plastic weight in its packaging by more than 20% compared to our internal standard products.
■This product is committed to environmental conservation and its packaging consists solely of paper, cardboard, and polybags.
