Code: 4549550351065

Brand: Elecom (ELECOM)

Model: EHC-LG05P-B

Product color: Black

Size information: 5 ports

About this product
All ports support Giga (1000BASE-T). You can achieve a high-speed network environment at home or in the office.

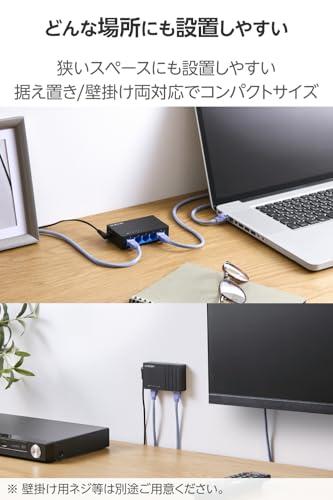

Compact size that can be installed in a space-saving manner. There is a hole on the back of the main unit for wall mounting, making wall mounting possible.

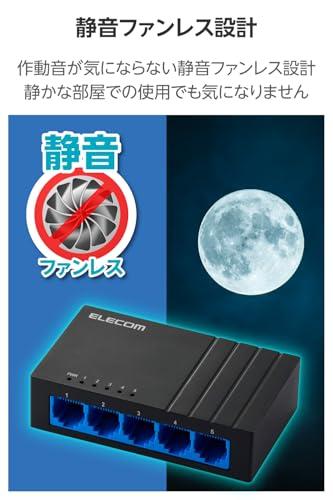

Silent fanless design that does not produce operational noise, so it can be used quietly even in a quiet room.

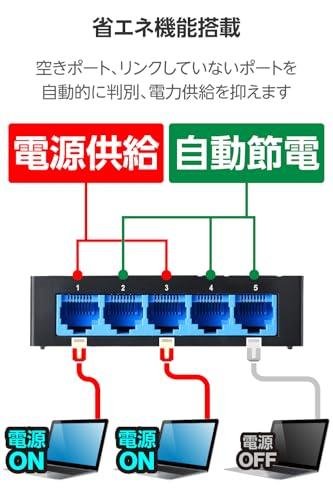

With easy power-saving function, it automatically detects ports that are not connected or not linked, and reduces power supply. In environments where the computer is shut down, it can significantly save power. This is a switching hub compliant with energy-saving laws.
Does not use electrolytic capacitors on the main board. This achieves a long lifespan design, making it a highly reliable switching hub.
› See more Brand: Elecom (ELECOM)
Number of ports: 5
Included components: 1 sheet, product information: 1 sheet, dedicated AC adapter (about 1.2m): 1 piece
Color: Black
Interface type: RJ45 About this product
All ports support Giga (1000BASE-T). You can achieve a high-speed network environment at home or in the office.
Compact size that can be installed in a space-saving manner. There is a hole on the back of the main unit for wall mounting, making wall mounting possible.
Silent fanless design that does not produce operational noise, so it can be used quietly even in a quiet room.
With easy power-saving function, it automatically detects ports that are not connected or not linked, and reduces power supply. In environments where the computer is shut down, it can significantly save power. This is a switching hub compliant with energy-saving laws.
Does not use electrolytic capacitors on the main board. This achieves a long lifespan design, making it a highly reliable switching hub.
› See more

Shipping size: Height 14.4cm, Width 8.9cm, Depth 6.1cm

Shipping weight: 140g

Specifications
Transmission speed: 1000Mbps (1000BASE-T), 100Mbps (100BASE-TX), 10Mbps (10BASE-T)
Compliance standards: IEEE 802.3ab, IEEE 802.3u, IEEE 802.3
Switching method: Store & Forward
Communication method: Full duplex, Half duplex
Flow control: IEEE 802.3x (full duplex), Back pressure (half duplex)
Number of ports: 5 ports
Auto MDI/MDI-X: Supported
Auto negotiation: Supported
Connector shape: RJ-45 5
Compatible cables: 1000BASE-T: UTP Category 5e or higher, 100BASE-TX: UTP Category 5 or higher, 10BASE-T: UTP Category 3 or higher
Buffer memory: 384Kbytes (dynamically allocated per port)
Switching fabric: 10.0Gbps
Maximum packet forwarding capacity: 7.4Mpps
Packet forwarding speed: 1,488,095 packets/sec (1000Mbps), 148,809 packets/sec (100Mbps), 14,880 packets/sec (10Mbps)
MAC address registration capacity: 2,048 entries (total for all ports)
Jumbo frame support: Supported (15Kbytes)
Non-blocking: Supported
EAP transparent function: Supported
BPDU transparent function: Supported
Loop detection prevention function: Not supported
PoE specifications: Not supported
Power supply specifications: Dedicated AC adapter
Input voltage: AC 100-240V 10%, 50/60Hz
Power consumption: 2.1W (maximum)
Heat generation: approximately 7.6kJ/h (maximum)
Power-saving function: Supports easy power saving
Energy consumption efficiency: 0.5W/Gbps
Maximum effective transmission speed: 5.0Gbps
Measured port speed and number of ports: 1Gbps: 5 ports

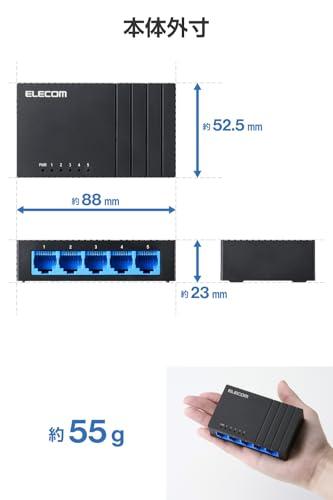

External dimensions: Width approximately 88mm, Depth approximately 52.5mm, Height approximately 23mm (main unit only)
Weight: approximately 55g (main unit only)
Housing material (color): Plastic (Black)
Cooling fan: None
Theft prevention: No security slot
Installation method: Horizontal installation, wall mounting
Wall mounting hole: Present
Operating environment conditions: Temperature: 0-40°C, Humidity: 10-90% (no condensation)
Storage environment conditions: Temperature: -40-70°C, Humidity: 5-90% (no condensation)
MTBF: 2,749,000 hours @25°C, 1,728,000 hours @40°C
Legal compliance: EU RoHS compliant (10 substances)
Applicable standards: VCCI Class B
Accessories: Dedicated AC adapter (about 1.2m): 1 piece, product information: 1 sheet, safety instructions: 1 sheet
Warranty period: 1 year
Maintenance service | Delivery: -
Maintenance service | Send-back extension: -
Dedicated optional item | Magnet: -

Description
All ports support Giga (1000BASE-T). You can achieve a high-speed network environment at home or in the office.
Compact size that can be installed in a space-saving manner. There is a hole on the back of the main unit for wall mounting, making wall mounting possible.
Silent fanless design that does not produce operational noise, so it can be used quietly even in a quiet room.
With easy power-saving function, it automatically detects ports that are not connected or not linked, and reduces power supply. In environments where the computer is shut down, it can significantly save power. This is a switching hub compliant with energy-saving laws.
Does not use electrolytic capacitors on the main board. This achieves a long lifespan design, making it a highly reliable switching hub.

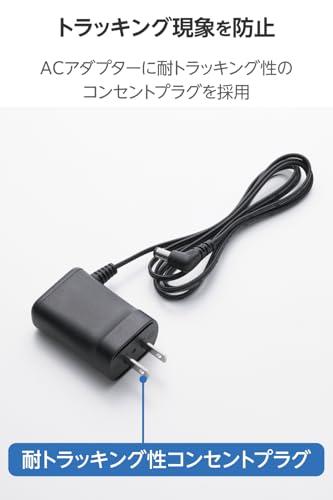

Uses a socket plug with tracking resistance for the AC adapter. Prevents tracking phenomena even after long-term installation.
Supports jumbo frames, enabling faster data transfer with jumbo frame compatible devices.
Compliant with EU RoHS directive, which restricts the use of certain hazardous substances in electrical and electronic equipment. The directive is established by the European Union (EU).
Products that meet at least one of our environmental certification standards and display the 'THINK ECOLOGY' mark.
Products that are environmentally friendly, with packaging made only of paper, cardboard, or plastic bags.

Product inquiries
Introducing FAQs and support community by category from product support.
Contact us here
8056.jp
Manufacturer's description

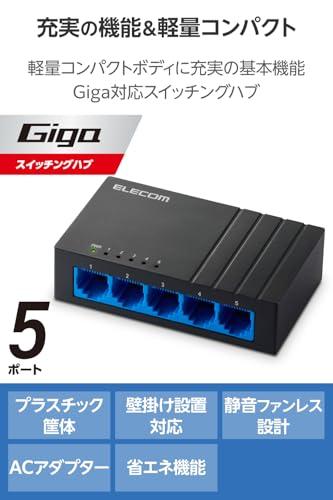

A compact size Giga-compatible 5-port switching hub that can be installed in a space-saving manner. Ready to use immediately after purchase without any setup.

Compact size

A compact size that can be installed in a space-saving manner.







Silent fanless design

A silent fanless design that does not produce operational noise, so it can be used quietly even in a quiet room.







Equipped with Auto MDI/MDI-X function

All ports feature the 'Auto MDI/MDI-X' function that automatically detects straight or crossover cables, preventing connection errors.
