Code: 4953103463097

Brand: ELECOM

Standard: EHB-UG2A08-S

Product color: White

Size information: 8 ports

Product size: Height 3, Width 17.2, Depth 8.4

Product weight: 381

About this product
This is an 8-port hub with a built-in power supply, compatible with 50°C operating environment temperature, and resistant to high-temperature environments, supporting 1000BASE-T.
It does not use electrolytic capacitors on the main circuit board. This enables a long-life design, making it a highly reliable switching hub.
It is equipped with loop detection/prevention functions to reduce network downtime. It detects loop configurations that could cause network operation failures and stops the affected ports to prevent loops.
During loop prevention operation, it notifies network loop occurrence with blinking LED lamps and a buzzer, encouraging the resolution of network issues.
It can be installed on a wall using wall-mount holes or the included magnet.
› See more Brand: ELECOM
Number of ports: 8
Included components

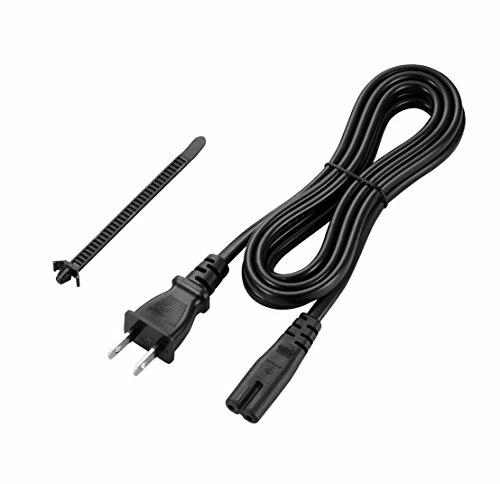

Exclusive AC power cable (2-pin, about 1.8m): 1, AC cable slip prevention band: 1, For safe use: 1, Rubber feet, Magnet attached to the product at shipment. Please use with the magnet attached even when placed horizontally.
Exclusive AC power cable (2-pin, about 1.8m): 1, AC cable slip prevention band: 1
Color: White
Unmanaged switch type Store & Forward About this product
This is an 8-port hub with a built-in power supply, compatible with 50°C operating environment temperature, and resistant to high-temperature environments, supporting 1000BASE-T.
It does not use electrolytic capacitors on the main circuit board. This enables a long-life design, making it a highly reliable switching hub.
It is equipped with loop detection/prevention functions to reduce network downtime. It detects loop configurations that could cause network operation failures and stops the affected ports to prevent loops.
During loop prevention operation, it notifies network loop occurrence with blinking LED lamps and a buzzer, encouraging the resolution of network issues.
It can be installed on a wall using wall-mount holes or the included magnet.
› See more

Shipping size: Height 22.7, Width 15.4, Depth 4.8

Shipping weight: 620

Connection method: 1000BASE-T/100BASE-TX/10BASE-T
Network type: IEEE802.3ab/IEEE802.3u/IEEE802.3
Number of ports: 8 ports
Connector shape: RJ-45 8
Compatible cables: 10BASE-T: UTP Category 3 or higher, 100BASE-TX: UTP Category 5 or higher, 1000BASE-T: UTP Category 5e or higher
MTBF: 725,000 hours
Input voltage: AC 100-240V 10% 50/60Hz
Power consumption (rated): Max 4.7W
Heat generation: Max approximately 17.0kJ/h
External dimensions (Width Depth Height): approximately 171.5 x 83.6 x 30.0 mm (body only)
Weight: approximately 380g
Operating environment conditions: Temperature: 0-50°C, Humidity: 10%-90% (non-condensing)
Storage environment conditions: Temperature: -40-70°C, Humidity: 5%-90% (non-condensing)
Warranty period: 3 years
Legal compliance: EU RoHS Directive compliant
Standards compliance: VCCI Class B
Included items: Exclusive AC power cable (2-pin, about 1.8m): 1, AC cable slip prevention band: 1, For safe use: 1, Rubber feet, Magnet attached to the product at shipment. Please use with the magnet attached even when placed horizontally.
Switching method: Store & Forward
Buffer memory: 192Kbytes (dynamically allocated per port)
Flow control: IEEE802.3x (full duplex), Backpressure (half duplex)
Switch fabric: 16.0Gbps
Max packet forwarding capacity: 12.0Mpps
Filtering speed: 1,488,000 packets/sec (1000Mbps), 148,800 packets/sec (100Mbps), 14,880 packets/sec (10Mbps)
MAC address registration: 4,096 entries (total across all ports)
Auto MDI/MDI-X: Supported
Auto negotiation: Supported (1000/100/10Mbps)
Non-blocking: Supported
Jumbo frame: Supported (9Kbytes)
Loop detection function: Loop prevention (buzzer sound)
EAP transparent function: Supported
BPDU transparent function: Supported
Power saving function: Compatible with Easy Power Saving E+
Energy consumption efficiency: 0.6W/Gbps
Max effective transmission speed: 8.0Gbps
Casing material (color): Metal (White)
Installation orientation: Horizontal, wall-mounted, magnet
Wall-mount holes: Yes
Cooling fan: None
