Code:4549550360432

Brand:ELECOM

Standard:EC-AC10740BK

Product color: Black

Product size: Height 3.7, Width 4.7, Depth 3.7

Product weight: 79

About this product
This is an AC charger equipped with a USB Type-C(TM) port and a USB-A port, capable of charging compatible smartphones, tablets, laptops, and more.
Charges with USB Power Delivery 40W. Can charge two smartphones such as iPhone simultaneously.
Can also charge compatible laptops like MacBook Air and tablets such as iPad.
Total output when two ports are connected simultaneously is up to 37W.

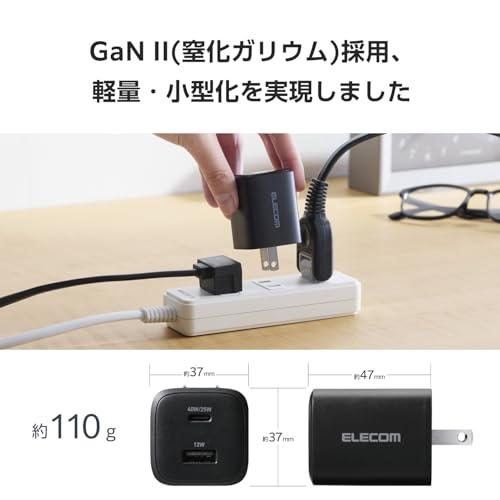

Adopts GaN II (Gallium Nitride), achieving high output while maintaining a compact size.
› See more brands ELECOM
Connection technology: USB
Connector types: USB Type C, USB Type A
Compatible devices: iPhone, iPad, MacBook, etc.
Supported phone models: iPhone, iPad, MacBook, etc.
No accessories included
Features: Supports charging two devices simultaneously, adopts GaN II (Gallium Nitride), PPS compatible (up to 33W)
Color: Black
Input voltage: 100 volts
Mounting type: Wall mount
About this product
This is an AC charger equipped with a USB Type-C(TM) port and a USB-A port, capable of charging compatible smartphones, tablets, laptops, and more.
Charges with USB Power Delivery 40W. Can charge two smartphones such as iPhone simultaneously.
Can also charge compatible laptops like MacBook Air and tablets such as iPad.
Total output when two ports are connected simultaneously is up to 37W.
Adopts GaN II (Gallium Nitride), achieving high output while maintaining a compact size.
› See more

Shipping size: Height 7.8, Width 6, Depth 4.5

Shipping weight: 110

Specifications
Supported devices: Devices that can be charged within the standard of USB Power Delivery 40W and PPS (Programmable Power Supply) 33W from USB Type-C(TM) port, or within 12W from USB-A port. When two ports are connected simultaneously, can charge devices with a maximum total output of 37W.
Connector shape: USB Type-C port 1, USB-A port 1
Rated input voltage: AC 100~240V, 50/60Hz
Rated input current: 1.5A
Rated output power: When connected alone: USB Type-C port maximum output 40W, PPS maximum output 33W, USB-A port maximum output 12W; When two ports are connected simultaneously: total maximum output 37W, USB Type-C port maximum output 25W, PPS maximum output 25W, USB-A port maximum output 12W
Rated output voltage: When connected alone: USB Type-C port: 5V/9V/15V/20V, PPS output 5~11V, USB-A port: 5V; When two ports are connected simultaneously: USB Type-C port: 5V/9V/15V/20V, USB-A port: 5V
Rated output current: When connected alone: USB Type-C port: 3A at 5V/9V, 2.67A at 15V, 2A at 20V; PPS output: 3A at 5~11V; USB A port: 2.4A at 5V; When two ports are connected simultaneously: USB Type-C port: 3A at 5V, 2.78A at 9V, 1.67A at 15V, 1.25A at 20V; USB A port: 2.4A at 5V
External dimensions: Width approximately 47mm, Depth approximately 37mm, Height approximately 37mm
Weight: approximately 79g
Color: Black

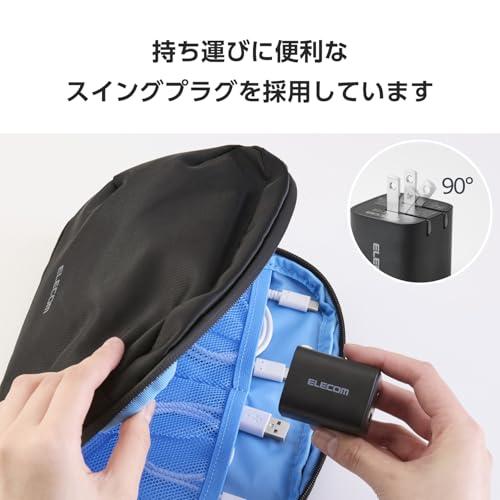

Power plug specifications: 90-degree swing structure
Operating temperature: 0 ~ 25
Law: PSE (Product Safety Electrical Appliance & Material) certified
Warranty period: 1 year

Description
This is an AC charger equipped with a USB Type-C(TM) port and a USB-A port, capable of charging compatible smartphones, tablets, laptops, and more.
Charges with USB Power Delivery 40W. Can charge two smartphones such as iPhone simultaneously.
Can also charge compatible laptops like MacBook Air and tablets such as iPad.
Total output when two ports are connected simultaneously is up to 37W.
Adopts GaN II (Gallium Nitride), achieving high output while maintaining a compact size.
Because the plug part can be folded, it easily fits into pockets or small bags. It can be used in a wide range of scenes such as everyday outings, business trips, remote work, and travel.
You can also use the USB-C - MagSafe 3 cable included with your MacBook. It allows for smooth charging of your MacBook.
Supports USB Power Delivery and PPS standards. The voltage and current change according to the device, enabling broad compatibility for charging smartphones, tablets, and even Windows laptops.
USB Power Delivery is a USB standard that exchanges information between the adapter and the connected device to select the appropriate power and enable fast charging. PPS (Programmable Power Supply) is an optional USB Power Delivery feature that adjusts voltage in 0.02V increments for efficient power supply at suitable levels.
The maximum USB Power Delivery output of this product is 40W. The maximum PPS (Programmable Power Supply) output is 33W.
This product has undergone independent testing equivalent to USB-IF certification, ensuring high compatibility with USB Power Delivery-compatible devices.
It is a PSE (Product Safety Electrical Appliance & Material) certified product. Additionally, it has passed our own rigorous testing, confirming high safety standards.
It uses a power plug that meets the anti-tracking requirements of the Electrical Appliance and Material Safety Law (PSE).
Charging cables are not included. Please prepare separately.
Charging the device or charger while wet can cause abnormal heat generation and damage, which is very dangerous. Please avoid doing so.
USB Type-C and USB-C are trademarks of the USB Implementers Forum.
This product meets at least one of our internal environmental certification standards and displays the 'THINK ECOLOGY' mark.
We are committed to waste reduction and have made the included user manuals and instructions paperless.
We are dedicated to environmental conservation by reducing the plastic weight in the product's packaging by over 20% compared to our standard products.
The product's packaging consists solely of paper, cardboard, and plastic bags, supporting environmental preservation efforts.
The product's main components and materials contain more than 10% recycled raw materials, contributing to environmental sustainability.
