【特長】
●シックハウスの原因となるVOC13品目を原材料に使用しない、健康にも環境にも配慮した接着系アンカーです。
●施工時に不快となるスチレン臭は全くしません。
●回転施工では60dB以下の低騒音施工が可能です。
●回転打撃施工では水中施工が可能です。
【用途】
●改修用差筋に。
●耐震補強に。
●鉄骨ベース取付。
●ガードレール取付。
●堤防嵩上げ。
●鉄骨ベース。
●支持金具取付。
●水中工事。
●橋脚補強。
【仕様】
●外径(mm)：13
●全長(mm)：83
●容量(ml)：10
●使用ボルト(異形棒鋼)：M12、(D13)
●ドリル径(異形棒鋼)(mm)：14.5、(16)
●穿孔深さ(mm)：100
●引張最大荷重(kN)：70
●長期許容引張荷重(kN)：11.3
●短期許容引張荷重(kN)：17.0
【仕様２】

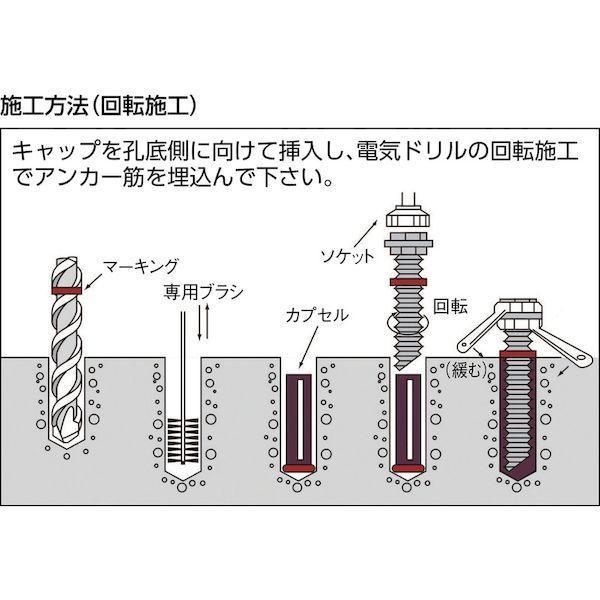

●回転施工・回転打撃施工型
【材質／仕上】
●非スチレン系変性ビニルエステル樹脂
【注意】
●引張最大荷重は、コンクリート強度Fc21N/m［［Ｍ２］］時の値です。
【原産国】
日本
| Product # | ED1667071 |
|---|
