Code: 4550133352928

Brand: Daiwa

Specification: 00631561

Product color: Gunmetal

Size information: TIERRA AIR IC 100XHL

Product weight: 165

About this product
An IC reel that lets you forget the weight and enjoy the moment with the fish.
Gear ratio: 8.1 Line retrieve length (cm/handle rotation): 76
Weight (g): 165 Max drag force (kg): 4.5
Standard line capacity PE (号-m): 0.6-200/0.8-120/1-100 Standard line capacity Nylon (lb-m): -
Bearings (ball/bearing): 6/1 Handle length (mm): 110
› See more Brand: Daiwa
Handle orientation: Left handle
Color: Gunmetal
Fishing techniques: Squid metal, Batcon
Product weight: 0.17 kilograms
Gear box ratio: 8.1
Model name: TIERRA AIR IC 100 About this product
An IC reel that lets you forget the weight and enjoy the moment with the fish.
Gear ratio: 8.1 Line retrieve length (cm/handle rotation): 76
Weight (g): 165 Max drag force (kg): 4.5
Standard line capacity PE (号-m): 0.6-200/0.8-120/1-100 Standard line capacity Nylon (lb-m): -
Bearings (ball/bearing): 6/1 Handle length (mm): 110
› See more

Shipping size: Height 15.1, Width 14.8, Depth 7.9

Shipping weight: 310

Manufacturer's description
An IC reel that lets you forget the weight and enjoy the moment with the fish.

Introducing a super lightweight, compact IC reel that eliminates line trouble. The body is made with a ZAION frame and side plates to ensure rigidity, and the rotation performance is refined with HYPERDRIVE DESIGN. Additionally, it features a spool shape designed to prevent line gumming, which is a common enemy of IC reels, by adopting a shape that reduces line gumming. This reduces line trouble caused by line gumming, especially when using fine PE lines. When paired with lightweight models like the Emeraldas or Gekkabijin rods, the TIERRA AIR IC achieves a total weight in the low 200g range. In techniques such as Squid Metal and Batcon, this lightness significantly enhances sensitivity and operability, allowing you to focus entirely on interacting with the fish.

HYPERDRIVE DESIGN







HYPERDRIVE DIGIGEAR

A gear system designed for baitcasting reels that pursues strong, smooth rotation. The gear tooth module (size), which directly affects durability, is not reduced, achieving a higher mesh rate, and enabling the initial smoothness to last longer—an exclusive Daiwa technology.


HYPER DOUBLE SUPPORT

A drive support system that maintains smoothness and achieves strong, lightweight winding. By supporting both ends of the pinion gear with two high-precision ball bearings, input from the handle is not dampened, allowing powerful and light winding even under load.


Hyper Tough Clutch

A cutting-edge insulation structure that ensures extremely few troubles even in high salinity seawater, with a clutch system that offers sharp on/off performance that can be repeatedly slided thousands or tens of thousands of times, and is highly resistant to salt damage. It has already reduced the number of seizing repairs in harsh salt environments by 99% compared to our previous models.

Detailed specifications

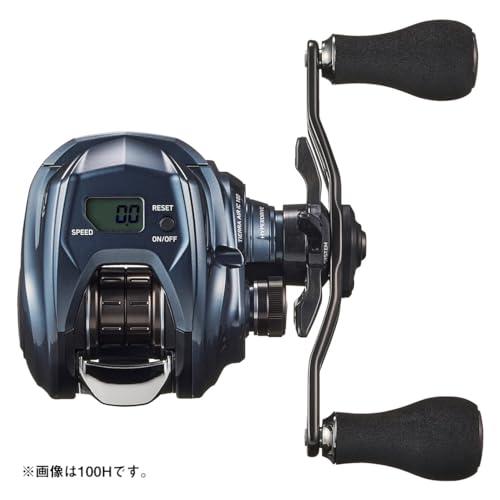

IC counter

"Accurately grasp the invisible underwater environment."

10cm unit water depth counter
Depth alarm (1/3/5 times/OFF selection). Defaults to 5 falls and 1 rise.
Retrieval speed display
LED backlight (5 seconds on/always on/OFF). Defaults to "5 seconds on."
Boat edge alarm
Line break correction at one shot
Line length input (can be input from 0.4号 or higher)
P3 pull-out input 30-60m specification
Timer display (displays the time of bait deployment)


Line gum reduction spool

"Reduces line trouble caused by line gumming" — The enemy of IC counters, line gumming, is especially likely to occur when using fine PE lines due to the characteristics of baitcasting reels. The TIERRA AIR IC adopts a spool shape with a step at both ends of the line winding surface, used in PE-specific finesse models, to reduce the possibility of line gumming, enabling use with fine PE lines.


110mm AL double handle

"Handle specifications to eliminate winding heaviness" Equipped with a lightweight-feeling 110mm aluminum crank handle. Supports retrieval of rigs and interaction with fish.

Technology







ZAION

A carbon resin woven with high-density carbon fibers, lightweight, strong, and highly resistant to corrosion. A material that surpasses magnesium in weight ratio strength, making the impossible possible. Used in main parts such as the body and rotor, contributing to high rigidity and lightweight design.


ATD

Eliminates initial bite sensation at the start of drag engagement and provides smoothness without unevenness, while increasing the drag force as you tighten it.


Self-replaceable battery

Battery replacement is quick and easy. Equipped with a waterproof battery cover that resists scratches. No special tools are required; just a coin to open and close, allowing you to replace the battery yourself. Also, removing the battery does not require re-inputting the line. (CR2032 coin battery)

Compatible with optional parts sold separately

Handle knob: S size knob compatible
23RCSB 80mm carbon crank handle
23RCSB 85mm carbon crank handle
23RCSB 90mm carbon crank handle
23RCSB 95mm carbon crank handle
23RCSB 100mm carbon crank handle
RCSB BF75mm handle set
SLPW SCL MC star drag
SLPW SCL MC54 star drag
SLPW SCL ZAION star drag
