Code: 4550133084225

Brand: Daiwa (DAIWA)

Model: 00066010

Product color: Black

Product weight: 10

About this product
First adoption of "Monocoque Body" in LB reels. Basic performance of LB has evolved.

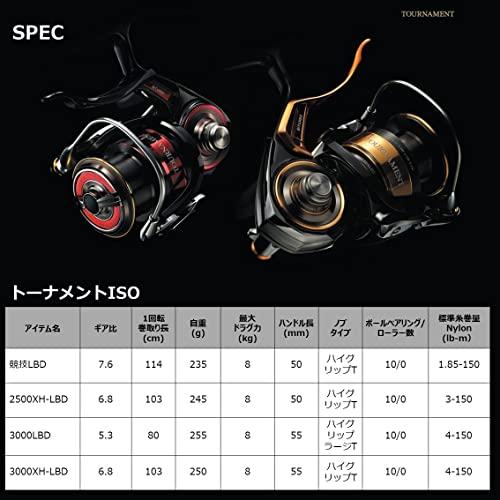

Gear ratio: 7.6 / Line retrieve length (cm): 114
Drag force (kg): 8 / Weight (g): 235
Handle length (mm): 50 / Ball bearings / Roller bearings: 10 / 0
Standard line capacity nylon (号-m): 1.85-150
› See more brands Daiwa (DAIWA)
Hand orientation: Both-handed
Color: Black
Material: ZAION
Fishing technique: Rock fishing
Product weight: 0.01 kilograms
Gear box ratio: 7.6
Model name: 22 Tournament ISO
Fishing reel line retrieve: 114 centimeters
Maximum drag force of fishing reel: 8 kilograms
About this product
First adoption of "Monocoque Body" in LB reels. Basic performance of LB has evolved.
Gear ratio: 7.6 / Line retrieve length (cm): 114
Drag force (kg): 8 / Weight (g): 235
Handle length (mm): 50 / Ball bearings / Roller bearings: 10 / 0
Standard line capacity nylon (号-m): 1.85-150
› See more

Shipping size: Height 17.8, Width 16.1, Depth 11.7

Shipping weight: 520

Brand introduction


Daiwa, leading the world, advocates "Feel Alive. Feel the best moments." continues to drive popular fishing, covering a wide range of target fish. Supported by high technical skills, manufacturing and selling a variety of fishing gear including reels, rods, lures, wear, and accessories. Also provides valuable natural experience opportunities through "Daiwa Young Fishing Club" for children supporting the future.


PICK UP

Access the store


Cooler box feature

Access the store


WEAR

Access the store


Tackle box feature

Access the store


Line feature

Access the store


Beginner lure fishing feature

Access the store


Shore jig feature

Access the store


Aji-mapping and Mebaring feature

Access the store


Impact feature

Access the store explanation by manufacturer
A new form of "strength".

Advancement of technology promotes further improvement of tackle, and the evolution of tackle brings innovation to fishing techniques. The relentless pursuit of evolution expands the fun of rock fishing and continues the quest for a deeper world, a dream. For your present and future, the best experience. DAIWA's dream is always with anglers.

Resilient durability technology "Monocoque Body"

The Monocoque Body is a new structure unique to DAIWA that eliminates the body cover. Its simple structure revolutionizes spinning reels and demonstrates many advantages even in LB reels. High rigidity, power, durability, and silky rotation performance reflect a new image of LB.

Main features

Silky rotation

Adopting a high-rigidity Monocoque Body improves gear support accuracy and achieves a silkier rotation than before. The body without deformation and the firmly meshing gears create a high-quality rotation feel.

Increased winding power

The simple Monocoque structure allows for a larger diameter drive gear. Winding power is increased, making it easier to handle large fish, retrieve from main streams or deep waters, and recover rigs.

Improved rotational durability

The larger diameter gears also contribute to improved rotational durability. It successfully maintains initial rotational performance over a long period and achieves the highest level of practical durability in TOURNAMENT ISO LBD history.

Enhanced waterproofing

The improved airtightness of the Monocoque Body and the high water resistance of Magshield work together to block water ingress into the body interior. Achieved the highest level of waterproofing in TOURNAMENT ISO LBD history.

TECHNOLOGY

New structure that eliminates the body cover and screws the plate directly

Traditional spinning reels typically fix the body cover to the body with screws to support the drive gear at both ends. This structure was revised to improve rigidity and rotation accuracy, resulting in the Monocoque Body. By removing the conventional body cover and directly screwing in a precisely finished engine plate, body rigidity is greatly increased. It also contributes to improved gear support accuracy and airtightness.

Elimination of screw holes to expand drive gear housing area

The Monocoque Body, which does not require screw holes to secure the body cover, significantly expands the internal space compared to conventional structures. While maintaining the same body surface area, it allows for the installation of larger drive gears. Larger drive gears bring benefits such as increased power, improved rotational durability, and the potential for higher gear ratios.

Upsizing the diameter and thickness of the drive gear. Achieving new levels of power and strength.

The large-diameter drive gear that can be installed because of the Monocoque Body enables powerful winding and improved rotational durability. Additionally, increasing gear thickness reduces deformation during high loads, giving the NEW TOURNAMENT ISO LBD a robust heart that can handle big fish. The competition LBD has a 9% increase compared to previous models, and sizes 2500/3000, which require more toughness, feature gears 13% thicker than previous models. Coupled with the high-rigidity Monocoque Body, power and reliability are greatly enhanced.

Blocking water ingress with simple structure and Magshield

The Monocoque Body, which does not require screw holes, is sealed with an engine plate and gaskets. The structure isolates the brake and gear spaces, reducing water entry into the interior, and works synergistically with Magshield to achieve high waterproof performance.

OTHER TECHNOLOGY

Magshield / Magshield ball bearings

Magshield uses a special magnetic fluid called Mag Oil to create a protective oil wall on the main shaft. This technology is applied by sealing Mag Oil inside ball bearings, equipped on the drive gear shaft, further enhancing waterproof and dustproof functions.

Vita Brake System

Using titanium discs, it achieves twice the braking efficiency of conventional models, providing strong braking force. Brake response to reach necessary braking force is also shortened to one-quarter of the previous.

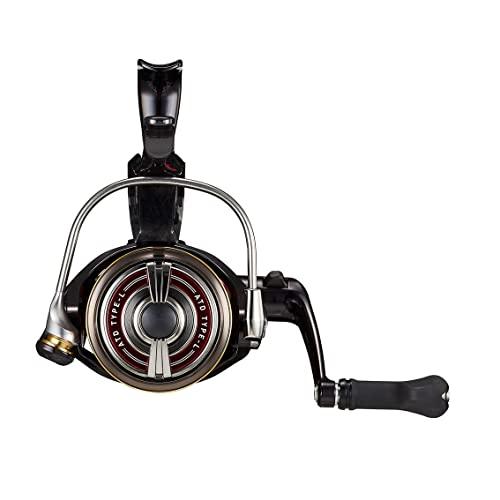

ATD Type L / ATD Tuff

The "ATD" system, which responds instantly to sudden tension, has been further evolved. Changing the ratchet shape of the drag release reduces resistance during drag operation, improving response. The release sound volume is also increased, allowing detection of slight drag operation by sound. For competition LBD models 2500XH-LBD, a felt washer is used for fine-line handling, called "ATD Type-L," and for 3000LBD / 3000XH-LBD, a high-durability carbon washer is used, called "ATD Tuff."
