Code:4550133352898

Brand: Daiwa (DAIWA)

Model: 00631558

Product color: Gunmetal

Size information: TIERRA AIR IC 100H

Product weight: 165

About this product
IC reel that allows you to forget the weight and enjoy the moment with the fish
Gear ratio: 7.1 Line retrieve length (cm/handle rotation): 66
Weight (g): 165 Max drag force (kg): 5
Standard line capacity PE (号-m): 0.6-200/0.8-120/1-100 Standard line capacity nylon (lb-m): -
Bearings (ball/bearing): 6/1 Handle length (mm): 110
› See more brands Daiwa (DAIWA)
Handle orientation: right handle
Color: Gunmetal
Fishing techniques: squid metal, Bachi-kon
Product weight: 0.17 kilograms
Gear box ratio: 7.1
Model name: TIERRA AIR IC 100 About this product
IC reel that allows you to forget the weight and enjoy the moment with the fish
Gear ratio: 7.1 Line retrieve length (cm/handle rotation): 66
Weight (g): 165 Max drag force (kg): 5
Standard line capacity PE (号-m): 0.6-200/0.8-120/1-100 Standard line capacity nylon (lb-m): -
Bearings (ball/bearing): 6/1 Handle length (mm): 110
› See more

Shipping size: height 15.2, width 14.8, depth 8.1

Shipping weight: 310

Manufacturer's description
IC reel that allows you to forget the weight and enjoy the moment with the fish

Ultra-lightweight compact IC reel introduced to eliminate line trouble. The body is made of ZAION frame and side plates to ensure rigidity, and the rotational performance is refined with HYPERDRIVE DESIGN. Additionally, it adopts a spool shape designed to prevent line gumming, assuming the use of fine PE lines. This reduces the enemy of IC reels, line gumming. When combined with lightweight models like Emeraldas and Gekka Bijin, TIERRA AIR IC achieves a total weight in the early 200g range. In techniques like squid metal and Bachi-kon, this lightness greatly improves sensitivity and operability, allowing you to focus on interacting with the fish.

HYPERDRIVE DESIGN







HYPERDRIVE DIGIGEAR

A gear system designed for both sides of baitcasting reels that pursues strong and smooth rotation. The gear tooth module (size), which directly affects durability, is not reduced, achieving a higher mesh ratio, which allows initial smoothness to last longer—an exclusive technology of DAIWA.


HYPER DOUBLE SUPPORT

A drive support system that achieves sustained smoothness and strong, lightweight winding. By supporting both ends of the pinion gear with two ball bearings with high precision, input from the handle is not dampened, enabling powerful and light winding even under load.


HYPER TOUGH CLUTCH

A clutch system with excellent on/off performance that continues to slide thousands or tens of thousands of times, and that has extremely few troubles even in seawater with high salinity. It has a cutting-edge insulation structure that has already reduced the number of sticking repairs in harsh salt environments by 99% compared to our previous models.

Specifications details

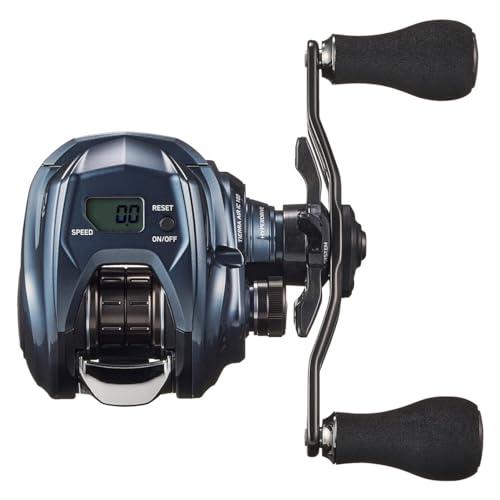

IC counter

"Accurately grasp the invisible underwater."

10cm unit water depth counter
Depth alarm (1/3/5 times/OFF selection method). By default, set to fall 5 times and rise 1 time.
Line winding speed display
LED backlight (5 seconds on/always on/OFF). Default setting is "5 seconds on."
Boat edge alarm
Line break correction at once
Line length input (can be input from 0.4号 or higher)
P3 pull-out input 30-60m specification
Timer display (displays the time of bait deployment)


Line gum reduction spool

"Reduces line trouble caused by line gum" Line gum, a nemesis for IC counters. Due to the characteristics of baitcasting reels, line gum is especially likely to occur when using fine PE lines. TIERRA AIR IC adopts a spool shape with a step at both ends of the line winding surface, used in PE-specific bait finesse models, to reduce the possibility of line gum. Suitable for use with fine PE lines.


110mm AL double handle

"Handle designed to eliminate winding weight" Equipped with a lightweight aluminum 110mm crank handle. Supports retrieval of rigs and interaction with fish.

Technology







ZAION

A carbon resin woven with high-density carbon fibers, lightweight, strong, and highly resistant to corrosion. It surpasses magnesium in weight-to-strength ratio, making the impossible possible. Used in main parts like the body and rotor, contributing to high rigidity and lightweight design.


ATD

Eliminates initial bite resistance at the start of drag operation, providing smoothness without unevenness, and increases drag force as tightened.


Self-replaceable battery

Quick battery replacement. Equipped with a waterproof battery cover that is resistant to scratches. No special tools needed; can be opened and closed instantly with a coin, allowing for self-replacement of batteries. Also, removing the battery does not require re-inputting the line (CR2032 coin battery).

Compatible with optional parts sold separately

Handle knob: S size knob compatible
23RCSB 80mm carbon crank handle
23RCSB 85mm carbon crank handle
23RCSB 90mm carbon crank handle
23RCSB 95mm carbon crank handle
23RCSB 100mm carbon crank handle
RCSB BF75mm handle set
SLPW SCL MC star drag
SLPW SCL MC54 star drag
SLPW SCL ZAION star drag
