Code: 4550133260025

Brand: Daiwa (DAIWA)

Model: 00066413

Product color: Black

Size information: 3000H

Product weight: 255

About this product
The Monocoque LB Second Generation adopts ZAION V to achieve lightweight design. Gear ratio 6.2, handle 93cm per turn. An all-round model with an easy-to-use gear ratio setting. The 2500H-LBD is equipped with 3号 nylon-150m, and the 3000H-LBD with 4号 nylon-150m. Both are equipped with an Economizer as standard, allowing for raising the bottom when winding thin line.
Gear ratio: 6.2, Line retrieve length (cm/handle turn): 93
Weight (g): 255, Max drag force (kg): 8
Handle length (mm): 50, Standard spool capacity nylon (号-m): 4-150
Bearings (ball/bearing): 7/0
› See more brands Daiwa (DAIWA)
Hand orientation: Both hands
Color: Black
Material: Other
Fishing techniques: rocky shore, breakwater, pier, harbor, river, estuary, etc.
Product weight: 0.26 kilograms
Gear box ratio: 6.2
Model name: Raxas
Line type: Nylon
Manufacturer: Daiwa (DAIWA)
About this product
The Monocoque LB Second Generation adopts ZAION V to achieve lightweight design. Gear ratio 6.2, handle 93cm per turn. An all-round model with an easy-to-use gear ratio setting. The 2500H-LBD is equipped with 3号 nylon-150m, and the 3000H-LBD with 4号 nylon-150m. Both are equipped with an Economizer as standard, allowing for raising the bottom when winding thin line.
Gear ratio: 6.2, Line retrieve length (cm/handle turn): 93
Weight (g): 255, Max drag force (kg): 8
Handle length (mm): 50, Standard spool capacity nylon (号-m): 4-150
Bearings (ball/bearing): 7/0
› See more

Shipping size: Height 13.5, Width 13.3, Depth 9.5

Shipping weight: 380

Brand introduction


Daiwa, a global leader, advocates "Feel Alive. Feel the best moments." continuing to lead popular fishing, covering a wide range of target fish. Supported by high technical skills, manufacturing and selling reels, rods, lures, wear, and small items. Also providing valuable natural experience opportunities through the "Daiwa Young Fishing Club" for children supporting the future.


PICK UP

Access the store


WEAR

Access the store


Cooler box feature

Access the store


Tackle box feature

Access the store


Line feature

Access the store


Beginner lure fishing feature

Access the store


Shore jig feature

Access the store


Aji and Mebaring feature

Access the store


Impact feature

Access the store by manufacturer description
Achieved lightweight design by adopting ZAION V

Because it is a "Monocoque body," it offers high rigidity. Improved waterproofness has evolved the Raxas. The key point of the "Monocoque body" is "Silky rotation." Improved body rigidity and gear support accuracy realize silky rotation. Also, "Increased winding power." Larger diameter gears improve winding power. Furthermore, "Enhanced rotational durability." Larger diameter gears also improve rotational durability. Lastly, "Improved waterproofness." The airtightness of the monocoque body and the high water resistance of the magnetic shield synergistically enhance the body’s waterproofness. ZAION V body rotor, ZAION handle arm, brake lever maintain strength while achieving 15g lighter than the 19 Raxas model. A new gear ratio 6.6 99cm XH model has appeared. The monocoque body enables further high gear ratios, allowing quick retrieval and handling. You can choose between the XH model with gear ratio 6.6 and 99cm, and the H model with gear ratio 6.2 and 93cm.

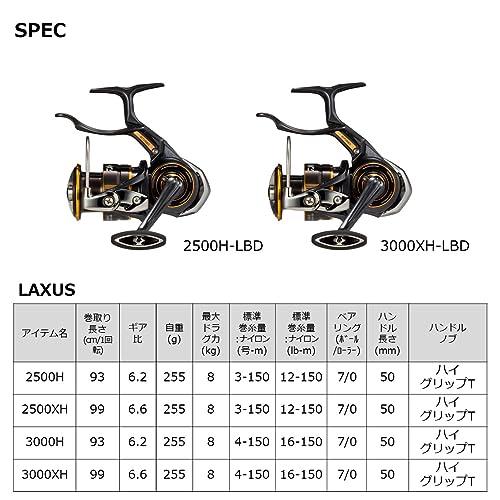

Specifications details







Lightest in the Raxas series

Achieved 255g, 15g lighter than the 270g 19 Raxas. The new monocoque body, lever, and spool contribute to overall weight reduction.


Continuing spool compatibility

If the drag knob is a push-type spool, any spool can be attached except for 4000LBD and Oochou Monster.


Large diameter drive gear

Compared to the 19 Raxas, the drive gear diameter is increased by 1mm to 31mm and 32mm, a 3mm increase, and gear thickness is increased by 5mm and 5.45mm, a 9mm increase, enhancing strength and durability.







New drag ratchet shape

Adopts a drag ratchet with the same structure as the Tournament ISO. Changing the shape reduces resistance during drag operation, and even slight drag activation can be detected by sound.


Manual bail return

Uses a manual return system where the bail is returned by hand. Prevents bail return during casting and improves durability. The bail does not return with handle rotation; after line release, manually return the bail.


Equipped with Economizer as standard

Standardly equipped with the "Economizer" useful for winding thin lines. Can wind 1.85号-150m on 2500 and 3号-150m on 3000.

Technology







MONOCOQUE BODY

Strong and durable technology, monocoque body. Traditional spinning reels support the drive gear at both ends with a body and body cover fixed by screws. To improve precision and rigidity, the body cover was eliminated, and a high-precision plate was directly screwed into the body, creating a monocoque body. This increases gear support accuracy, rigidity, and airtightness. It also allows for maximum enlargement of the drive gear size by utilizing space previously occupied by screws. "Monocoque" means a single shell, like a clam shell, symbolizing strength. This completely new structure breaks conventional reel design.


ZAION V

More lightweight and stronger reel. Developed carbon hybrid resin ZAION V. By precisely controlling the amount of carbon hybridized, it achieves lightweight performance surpassing metal and strength comparable to metal at a high level, with versatile applicability to many reels. It inherits the essence of ZAION, the maximum specification of carbon hybrid resin.


BITURBO BRAKE SYSTEM

Achieves twice the brake efficiency of conventional systems by adopting titanium disks, exerting strong braking power with just a light grip on the lever. The time to reach necessary brake force by gripping the lever is reduced to one-quarter of the conventional time.
