"Notes"
This product is a replacement product compatible with the target model.
This is not a product manufactured or sold by the manufacturer.
The manufacturer names and model names listed are for indicating compatible models and do not indicate affiliation, certification, or warranty with the manufacturer.
* Instruction manual is not included.
* Please understand that we do not provide support or inquiries regarding installation.
* If you are not confident about installation, we recommend having it installed by a professional contractor or mechanic.
* Please understand that we cannot answer questions or provide support if the product is used for vehicles other than the compatible models.
For Suzuki Jimny JA11 AT MT Electric Fan Aluminum Fan Shroud Set Radiator Fan Replacement Part.
Compatible models: Suzuki Jimny JA11, etc. Main unit size (approx.): 30cm x 43cm (including mounting holes) Fan diameter 32cm Cable length 39cm Weight (approx.): 1.6kg Power: 12V / 80W
Vehicles that use liquid cooling with coolant, such as the Jimny, are equipped with an electric fan on the radiator itself.
The electric fan operates to prevent the engine heat from raising the coolant temperature during low-speed driving in traffic jams where airflow to the radiator is reduced, or during hot summer days, and to maintain the optimal temperature.
If the electric fan motor fails and stops working, the coolant temperature will rise, leading to overheating and potential failure.
If the water temperature gauge indicates overheating but there is no decrease in coolant, and the thermostat shows no abnormalities, the electric fan may not be operating, and the fan motor may need inspection.
This is a durable part and is unlikely to break easily, but replacing it approximately every 5 years will provide peace of mind without causing trouble.
By using a reasonably priced replacement part of equivalent quality to genuine parts instead of expensive genuine parts for replacement, you can further reduce costs.

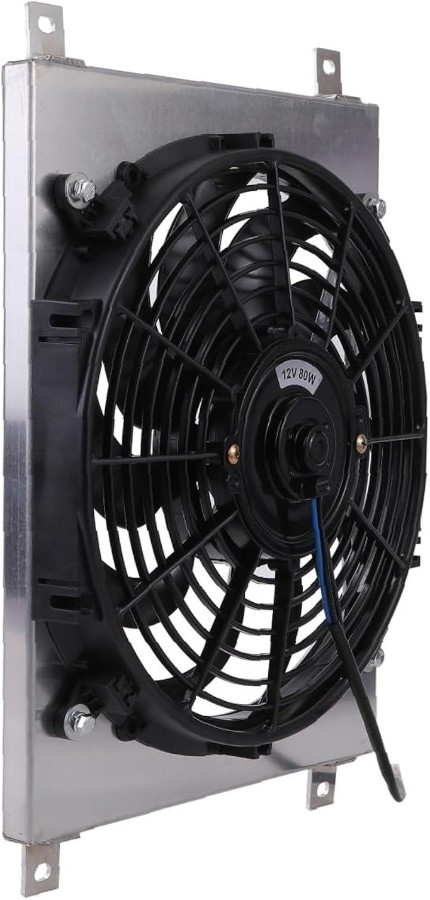

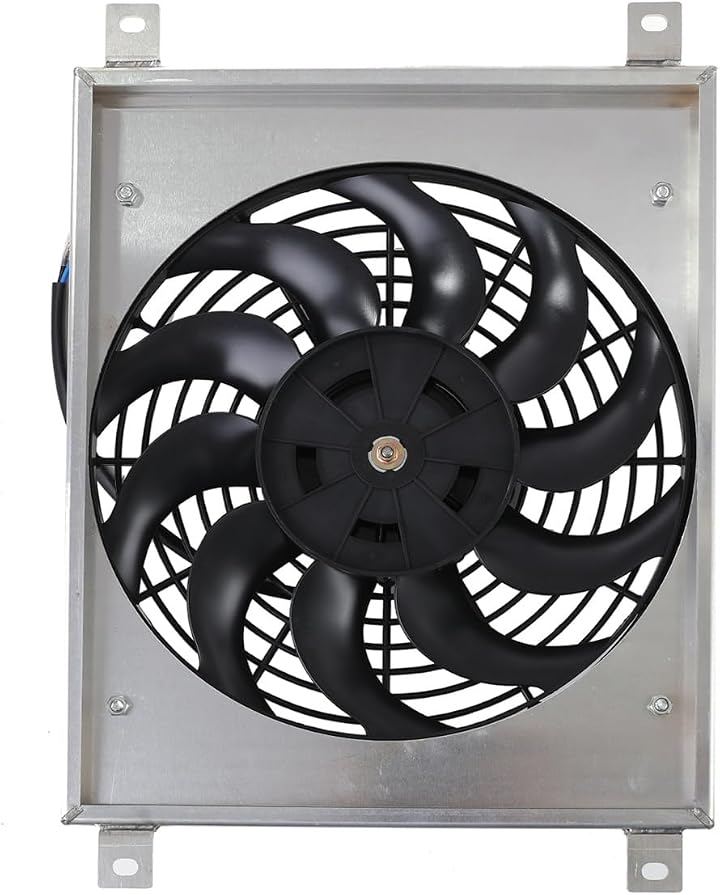

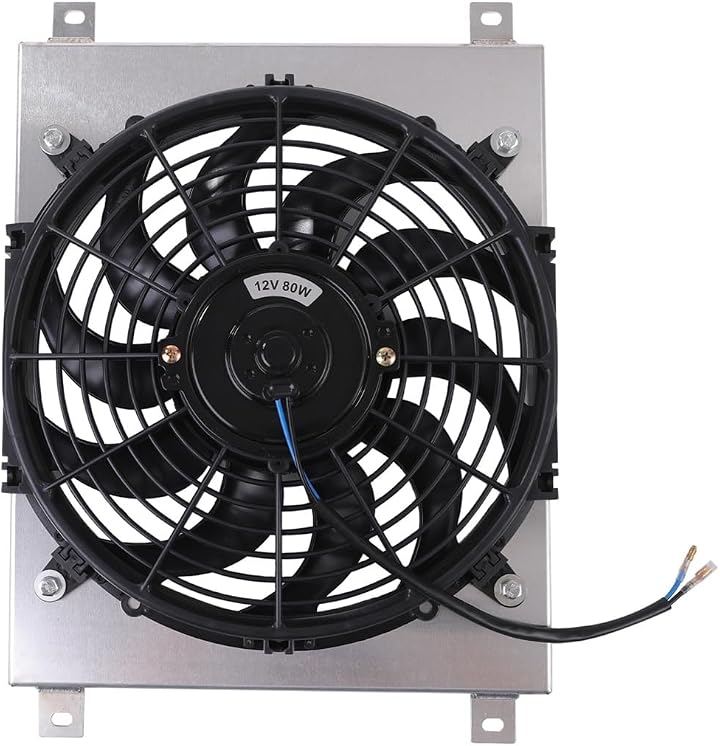

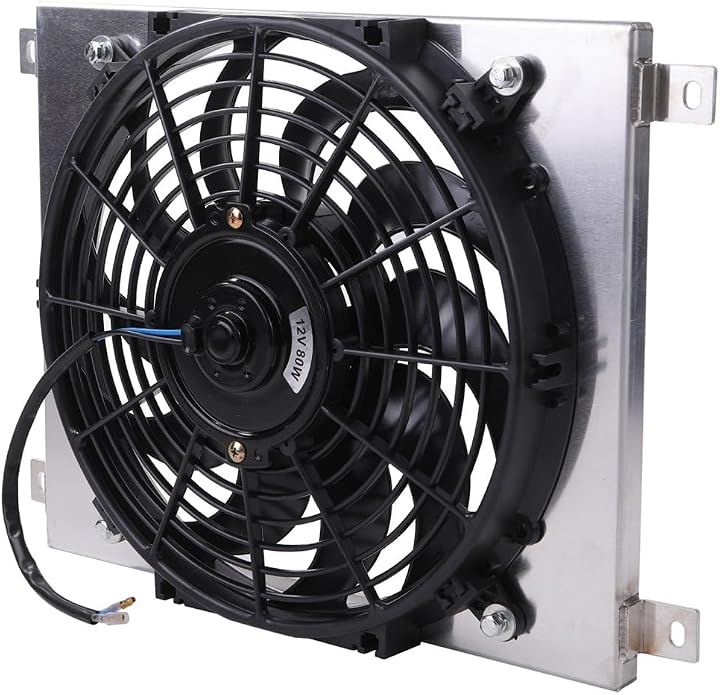

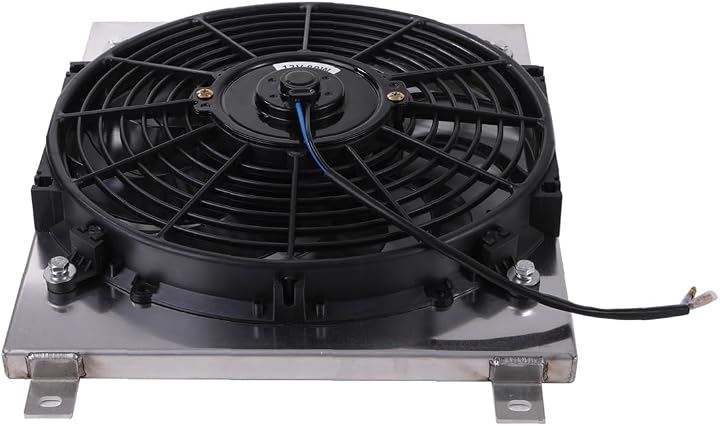

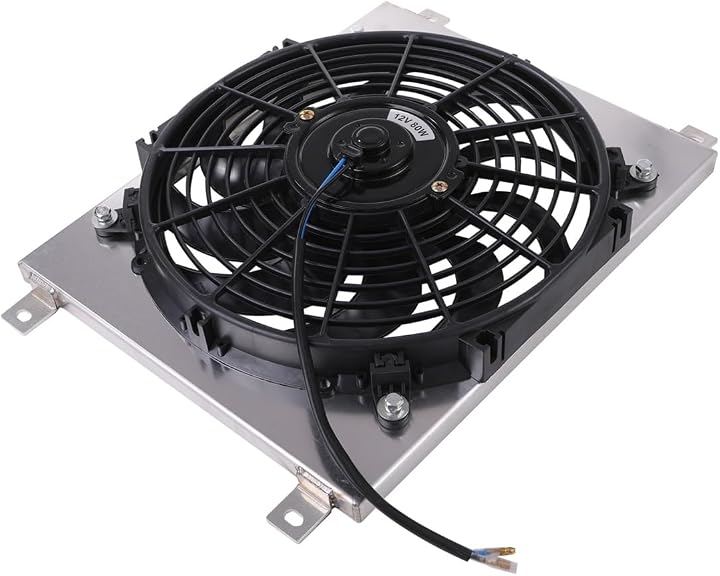

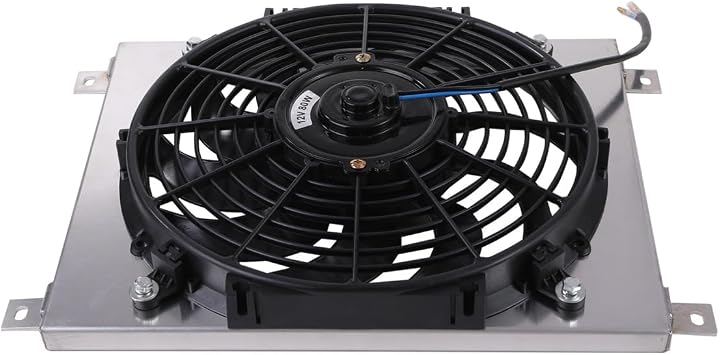

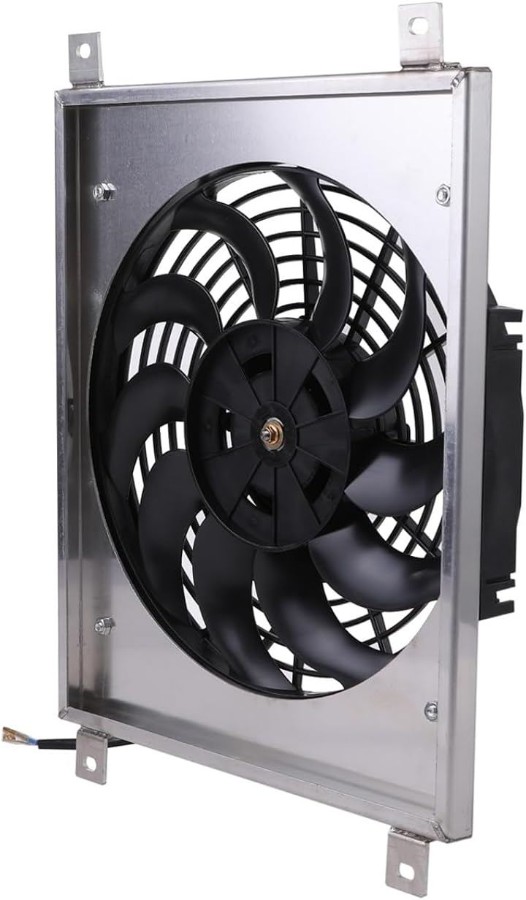

This product is a set of a lightweight aluminum fan shroud and an electric fan.
Plastic shrouds can deteriorate and become brittle due to heat, but this aluminum one is strong and durable, so you can use it with confidence for a long time.
To keep your beloved car running for a long time, please use it as a maintenance and repair part for inspection and servicing.
Parts can sometimes be difficult to obtain unexpectedly, so if you stock them in your garage while they are available, you can be assured of being able to perform maintenance when needed.
2026/10/08 18:02:14#6ee0d73746fa95c3738f00db1ba77ea7fc987a61
| Product # | 2BK045VGJN |
|---|---|
| Weight | 1600 g |
