オムロン
メーカーお問い合わせ：0120-919-066
【商品説明】

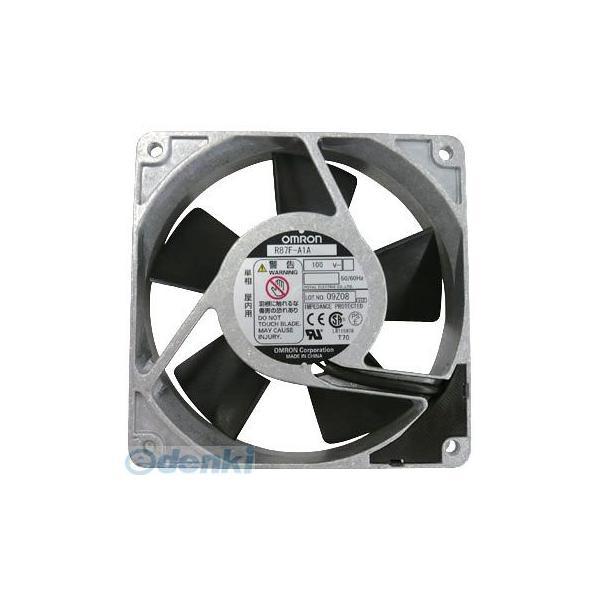

●特長：最適クーリングを実現する軸流ファン。
低騒音、長寿命、耐環境性を配慮した設計。
軸受けは信頼性の高いボールベアリングを採用。
●注意：プラグコード、フィンガーガード、フィルタは別売です。
●質量(g)：約540
●タイプ：標準タイプ
●形式：樹脂羽根シリーズ
●周波数(Hz)：50/60
●規格：UL/CSA
●定格電圧(V)：200
●定格回転数(min-1[r.p.m])：50Hz：2100
60Hz：2250
●保存温度(℃)：-40～+85(氷結しないこと)
●最大風量(m3/min)(50/60Hz)：2.0/2.1
●材質(フレーム)：アルミダイカスト
●絶縁抵抗(MΩ)：100以上(DC500Vメガ)
電源接続部一括と非充電金属部間
●使用周囲温度(℃)：-30～+70(氷結しないこと)
●使用軸受：ボールベアリング
●使用周囲湿度：25～85%RH
●フレーム幅(mm)：120
●絶縁階級：IEC B種(130℃)、UL A種(105℃)、CSA A種(105℃)
●フレーム高さ(mm)：120
●絶縁耐圧：AC2000V(1分間)
電源接続部一括と非充電金属部間
●許容電圧変動：定格電圧の85～110%
●フレーム奥行(mm)：38
●端子：引出端子：端子タイプ
●材質(羽根)：ガラス入ポリカーボネート
●保護方式：インピーダンスプロテクト
●回転速度：低速
●最大静圧(Pa)(50/60Hz)：44.1/44.1
●騒音値(dB)(50/60Hz)：36/38
●定格電流(A)(50/60Hz)：0.080/0.070
●定格入力(W)(50/60Hz)：11/10
| Product # | ED1152672 |
|---|
