**Features**

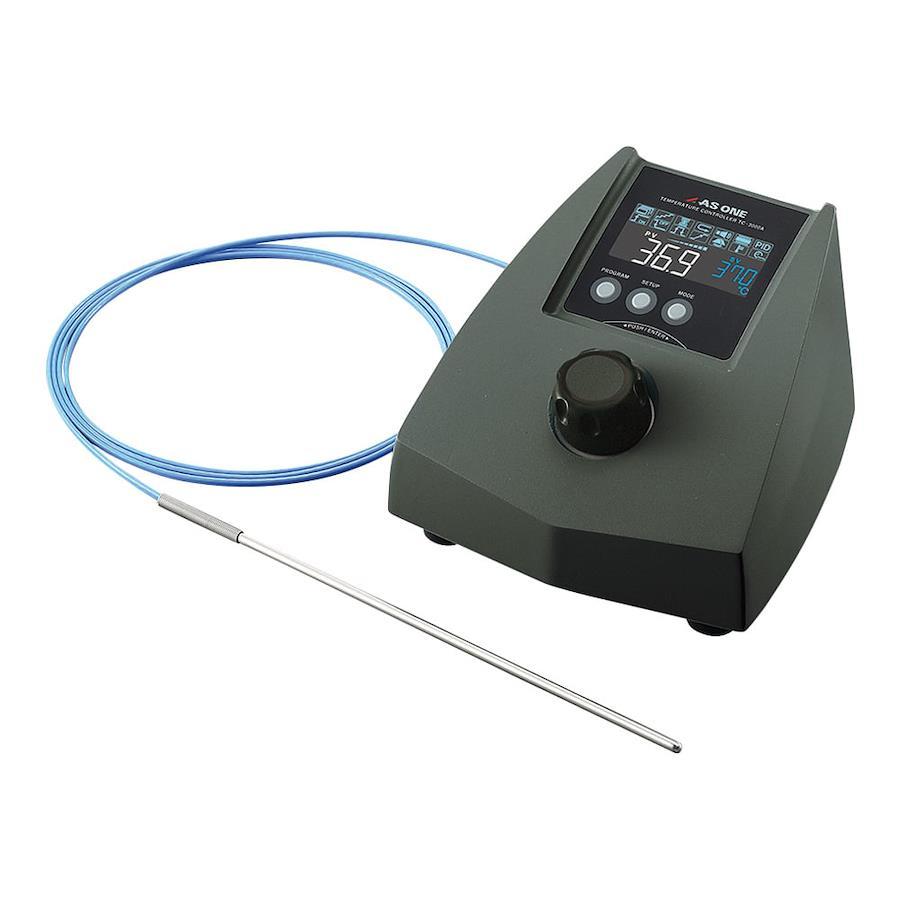

This temperature controller, packed with features in a compact body, offers four types of timer functions (ON, OFF, ON/OFF, SET). It includes self-diagnostic functions such as heater abnormality detection and sensor abnormality detection. High-precision temperature control is achieved through a microcomputer-based PID control system. The program function allows for input of up to 8 temperature and time steps, and is also equipped with a repeat function. A dedicated software (CD-ROM) for data storage and communication is included as standard, enabling easy management of test data on a PC (communication cable sold separately). An alarm signal output is standard, allowing for the stopping of other equipment or activation of a backup system in case of an abnormality.
**Specifications**
* Temperature Setting Range (°C): -20.0 to +500.0
* Minimum Display Unit (°C): 0.1
* Temperature Display Accuracy: F.S. ±0.5%
* Temperature Control Method: Microcomputer-based PID control
* Temperature Display Method: LCD digital display (simultaneous display of set/measured temperature, heater output bar graph display)
* Sensor: K thermocouple (standard) -20.0 to +500.0°C, Pt100Ω (optional) -199.9 to +199.9°C
* Safety Functions: Self-diagnostic function (upper/lower limit temperature abnormality detection, heater abnormality detection, sensor abnormality detection), circuit protector
* Additional Functions:
* Timer Function: Setting range / 1 minute to 99 hours 59 minutes (in 1-minute increments)
* Setting Value Memory Function
* Key Lock Function
* Auto Tuning Function
* Program Function:
* Number of Steps: Maximum 8 steps
* Number of Repeats: Maximum 9999 times
* Setting Resolution: Temperature 0.1°C, Time 1 minute
* Time Setting Range: 1 minute to 99 hours 59 minutes (in 1-minute increments)
* Upper/Lower Limit Temperature Alarm
* Data Storage and Communication Function: PC output (USB), Alarm signal output
* Supported OS: Windows® 7/8/10 (32/64bit)
* Power Supply: AC100V 50/60Hz
* Control Output: 3P AC100V MAX12A
* Size: 147×150×112mm
* Accessories: K thermocouple (φ4.0×200mm) × 1
* Differences from Previous Model: Main power switch (white → red). No other changes.
* Previous Model: 1-4597-23 Digital Temperature Controller
| Product # | AS1-1-4597-33 |
|---|
