Code: 4961310134969

Brand: Audio Technica

Model: ATH-WS770 GM

Product color: Gunmetal

Product weight: 265

About this product
Deep Motion Driver that achieves overwhelming deep bass reproduction
Controls the movement of the diaphragm precisely with a top-mount PCB method.
Unique Airflow Base Venting System
Vibration-damping dual enclosure design that produces less distortion in mid to high frequencies
Finished with a combination of gunmetal and luxurious gold for a high-quality design.
Speaker connection method: Wired
› See more brand Audio Technica
Color: Gunmetal
Headphone type: Over-ear
Headphone jack: 3.5mm jack
Model name: ATH-WS770 About this product
Deep Motion Driver that achieves overwhelming deep bass reproduction
Controls the movement of the diaphragm precisely with a top-mount PCB method.
Unique Airflow Base Venting System
Vibration-damping dual enclosure design that produces less distortion in mid to high frequencies
Finished with a combination of gunmetal and luxurious gold for a high-quality design.
Speaker connection method: Wired
› See more

Shipping size: Height 6.7, Width 24.1, Depth 28.6

Shipping weight: 608

Equipped with a dedicated φ53mm driver with a large diaphragm area. The deep amplitude and powerful magnetic circuit maximize vibration capability, producing overwhelming low frequencies. To more accurately control the movement of the diaphragm, the PCB is mounted on the top of the back of the driver. This equalizes air damping, reducing distortion in bass and balancing clear mid to high frequencies. Three air vents are arranged evenly along the concentric circle on the back of the driver. Efficiently creating the air spring effect inside the enclosure greatly improves low-frequency output efficiency. Combined with stainless steel material's acoustic resistance, it also balances low and mid-high frequencies. Adopts a robust dual enclosure structure made of high-rigidity precision-machined aluminum. Its excellent vibration damping design suppresses unwanted resonance transmitted from the driver, producing less distorted mid to high frequencies. Manufacturer's description.

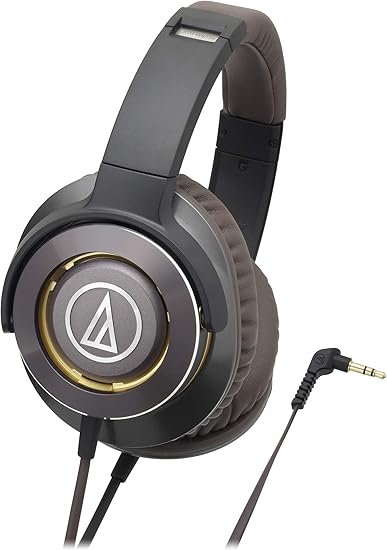

Portable headphones ATH-WS770 GM (Gunmetal)

Equipped with φ53mm "DEEP MOTION DRIVER" with a high-rigidity aluminum structure for powerful deep bass reproduction.







Product features
Dedicated driver structure embodying overwhelming deep bass reproduction: Deep Motion Driver

Equipped with a dedicated φ53mm driver with a large diaphragm area.
Enhances vibration capability with deep amplitude and a powerful magnetic circuit, delivering overwhelming low frequencies.

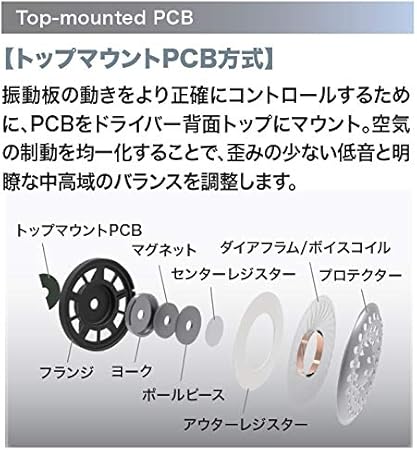

Top-mount PCB method: Mounts the PCB on the top of the back of the driver to control diaphragm movement more precisely.
Equalizes air damping to achieve less distorted bass and a balanced, clear mid to high frequencies.

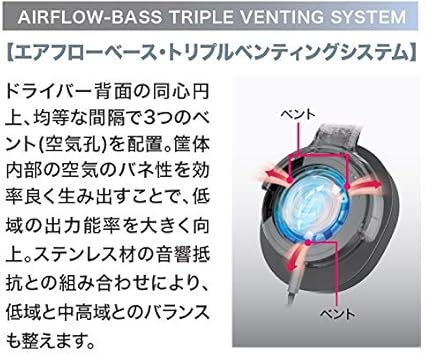

Airflow Base Triple Venting System

Arranged three air vents evenly along the concentric circle on the back of the driver. Efficiently creates the air spring effect inside the enclosure, greatly improving low-frequency output efficiency. The combination with stainless steel material's acoustic resistance also balances low and mid-high frequencies.



Technical data

Type: Sealed dynamic type
Driver: φ53mm
Output sound pressure level: 100dB/mW
Frequency response: 8Hz - 29,000Hz
Maximum input: 1,000mW
Impedance: 38Ω
Mass (excluding cord): approximately 265g
Plug: φ3.5mm gold-plated stereo mini (L-shaped)
Cord: 1.2m
Sold separately: Replacement ear pads HP-WS770
