B00008B5DO
Code: 4961310064808
Brand: Audio Technica
Specifications: AT-PMX5P
Product Color: Black
About this product
Despite its compact size, it allows mixing of 4 microphone/line channels and 1 stereo line channel, totaling 5 channels.
Includes 2 standard pin conversion plugs. Supports up to 2 stereo pin inputs.
Equipped with a stereo mini jack for microphone input compatible with plug-in power microphones.
Features trim controls on the 4 microphone/line channels, allowing input adjustment from microphones to CD/MD players.
Supports two power sources: AC adapter or batteries. Battery life is approximately 60 hours. (Uses 4 AA batteries)
› See more Brand: Audio Technica
Number of channels: 5
Dimensions: 13.3 cm depth x 16 cm width x 6.1 cm height
Power: Battery-powered
Output connector types: 1/4 TRS (balanced), RCA (composite) About this product
Despite its compact size, it allows mixing of 4 microphone/line channels and 1 stereo line channel, totaling 5 channels.
Includes 2 standard pin conversion plugs. Supports up to 2 stereo pin inputs.
Equipped with a stereo mini jack for microphone input compatible with plug-in power microphones.
Features trim controls on the 4 microphone/line channels, allowing input adjustment from microphones to CD/MD players.
Supports two power sources: AC adapter or batteries. Battery life is approximately 60 hours. (Uses 4 AA batteries)
› See more
Shipping size: Height 24.2 cm, Width 17.1 cm, Depth 7.2 cm
Shipping weight: 750 g
Product introduction
Despite its compact size, it allows mixing of 4 microphone/line channels and 1 stereo line channel, totaling 5 channels. Comes with 2 standard pin conversion plugs. Supports up to 2 stereo pin inputs. Equipped with a stereo mini jack for plug-in power microphone input. The 4 microphone/line channels have trim controls, allowing input adjustment from microphones to CD/MD players. Features a pan pot to freely set the L/R positioning. Outputs support two systems: stereo line (pin jack) and headphones (stereo mini jack). Supports two power sources: AC adapter or batteries, making it versatile for various locations. Battery life is approximately 60 hours. (Uses 4 AA batteries) When connecting a microphone to the standard jack inputs of CH1 and CH4, use a dynamic microphone or a microphone with built-in power. This product does not support 4-pole mini plug headphones such as those for smartphones.
More
Equipped with 4 microphone/line channels, a stereo mini microphone input compatible with plug-in power, and broadly usable with various devices, "Portable Multi Mixer"
Despite its compact size, it allows mixing of 4 microphone/line channels and 1 stereo line channel, totaling 5 channels.
Includes 2 standard pin conversion plugs. Supports up to 2 stereo pin inputs.
The stereo mini jack is a dedicated input for plug-in power microphones.
The 4 microphone/line channels have trim controls, allowing input adjustment from microphones to CD/MD players.
Features a pan pot to freely set the L/R positioning.
Output supports two systems: stereo line (pin jack) and headphones (stereo mini jack).
Supports two power sources: AC adapter or batteries, suitable for various locations. Manufacturer's description

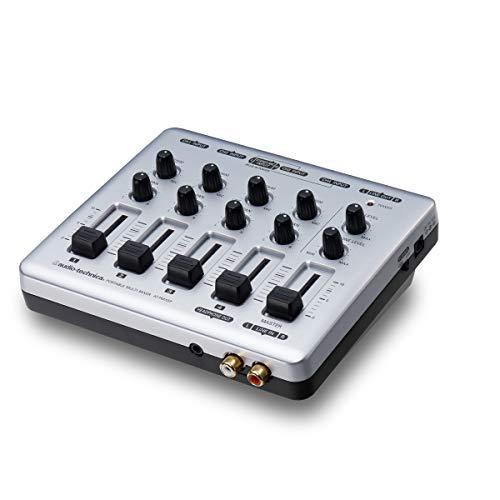

Audio-Technica Portable Multi Mixer
Technical Data
Rated input: +10dBV (TRIM=MIN), -50dBV (TRIM=MAX)
Rated output: -10dBV
Frequency response: 20Hz–20,000Hz (TRIM=MIN), 50Hz–20,000Hz (TRIM=MAX)
Max permissible input: +13dBV (TRIM=MIN)
Power: AC adapter (DC 12V, 300mA) or 4 AA batteries
Power consumption: 50mA (when outputting 1mW to headphones)
Battery life: approximately 60 hours (using alkaline batteries)

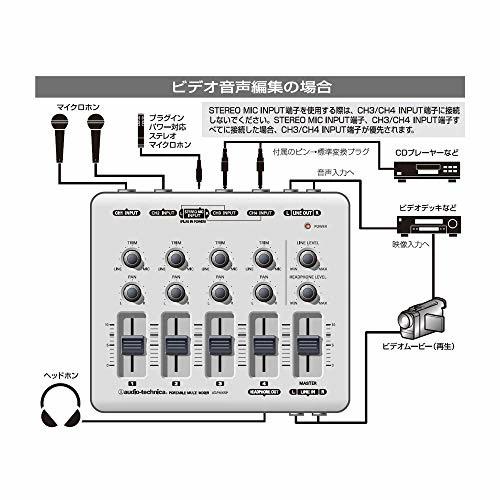

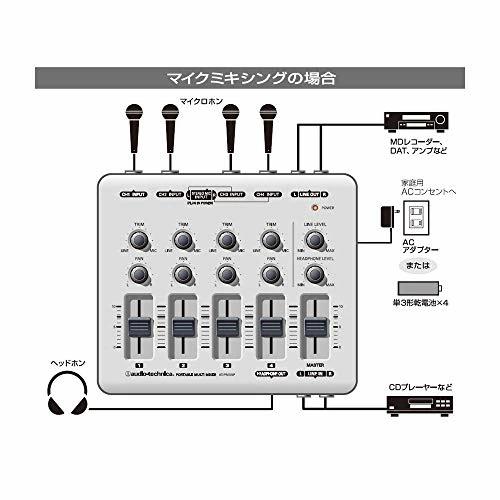

Input terminals:
Φ6.3mm standard jack x 4
Φ3.5mm 3-pole mini jack x 1
Pin jack x 2
Output terminals:
Pin jack x 2
Φ3.5mm 3-pole mini jack x 1
AT-PMX5P
Equipped with 4 microphone/line channels.
Features a plug-in power compatible stereo mini microphone input, making it a versatile portable mixer for various devices.

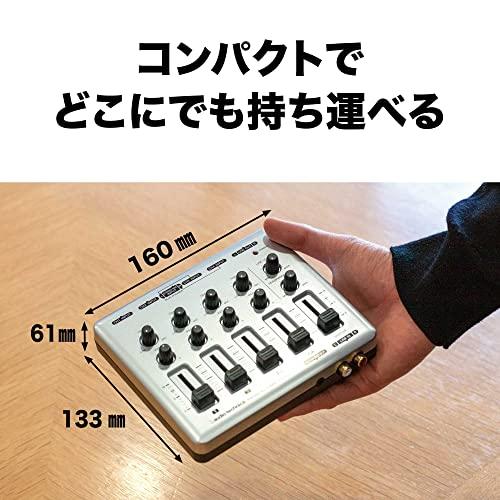

Dimensions (excluding protrusions): H48 W160 D133 mm
Weight (main unit only): approximately 360 g
Accessories: AC adapter, 2 standard pin conversion plugs
Despite its compact size, it allows mixing of 4 microphone/line channels and 1 stereo line channel, totaling 5 channels.
Includes 2 standard pin conversion plugs. Supports up to 2 stereo pin inputs.
The stereo mini jack is a dedicated input for plug-in power microphones.
The 4 microphone/line channels have trim controls, allowing input adjustment from microphones to CD/MD players.
Features a pan pot to freely set the L/R positioning.
Output supports two systems: stereo line (pin jack) and headphones (stereo mini jack).
Supports two power sources: AC adapter or batteries, suitable for various locations.
| Product # |
202505170140004961310064808 |
