Code: 4961310151768

Brand: Audio Technica (Audio-Technica)

Model: AT-AQ475

Product Color: Black

Product Size: Height 30, Width 7, Depth 0.4

Product Weight: 4.3

Blocks water droplets such as rain and condensation that invade inside the door with a trapezoidal speaker protection sheet.
Blocks water droplets such as rain and condensation that invade inside the door with a trapezoidal speaker protection sheet.
Attach a baffle protection sheet between the inner baffle and the inner panel to suppress rattling sounds of the baffle.
› See more Blocks water droplets such as rain and condensation that invade inside the door with a trapezoidal speaker protection sheet.
Blocks water droplets such as rain and condensation that invade inside the door with a trapezoidal speaker protection sheet.
Attach a baffle protection sheet between the inner baffle and the inner panel to suppress rattling sounds of the baffle.
› See more

Shipping Size: Height 33.2, Width 9.2, Depth 2.5

Shipping Weight: 80

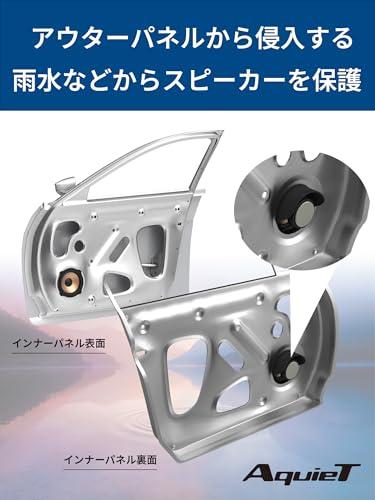

Protects speakers from water droplets such as rain and suppresses rattling sounds of the baffle.
Blocks water droplets such as rain and condensation that invade inside the door with a trapezoidal speaker protection sheet.
Firmly attach with powerful adhesive for long-term use.
Attach a baffle protection sheet between the inner baffle and the inner panel to suppress rattling sounds of the baffle.

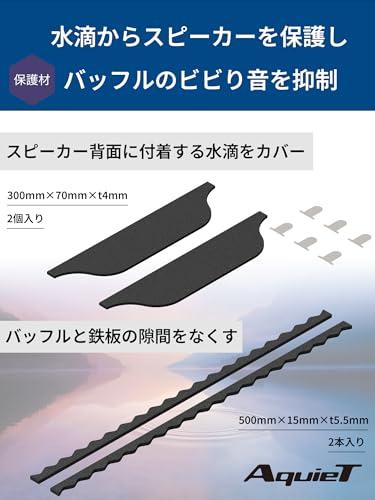

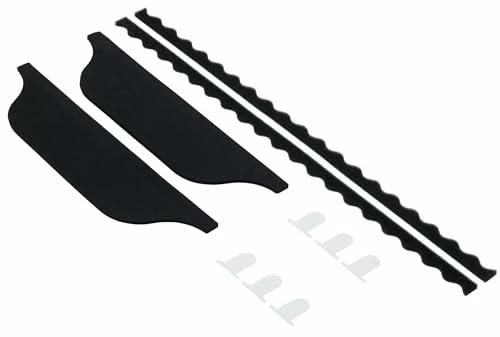

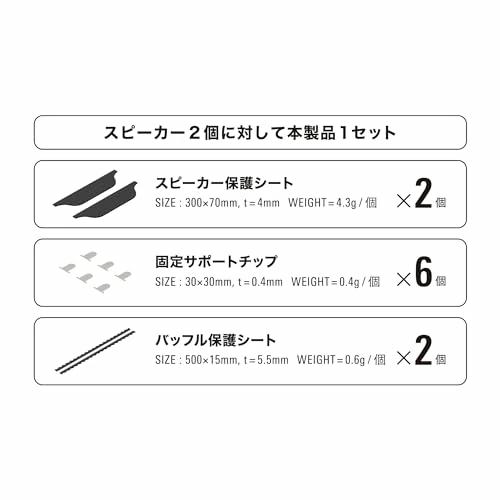

Package Contents
Protection Material
Speaker Protection Sheets 2 pieces
Material: EVA, Weight: approximately 4.3g per piece, External Dimensions: 300 x 70mm, Thickness 4mm
Fixing Support Tips 6 pieces
Material: PET, Weight: approximately 0.4g per piece, External Dimensions: 30 x 30mm, Thickness 0.4mm
Baffle Protection Sheets 2 pieces
Material: PU, Weight: approximately 0.6g per piece, External Dimensions: 500 x 15mm, Thickness 5.5mm, Brand Introduction

A higher-grade door tuning material

The door tuning material made from carefully selected materials can maintain high performance over a long period even in the environment of a car with drastic changes in temperature and humidity. All car audio enjoyment is expanded with the 'AquieT' series. A rich musical space for you.


Lineup

Access Store


Lineup

Access Store


Lineup

Access Store


Lineup

Access Store


Lineup

Access Store


Lineup

Access Store


Lineup

Manufacturer's Description

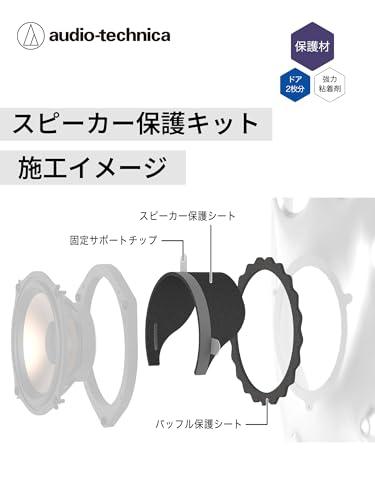

Installation Method

Installing the speaker protection sheet

Install this product on a commercially available inner baffle.
Thoroughly wipe the surface to be attached to with a cloth to remove dirt, oil, and moisture. Residual dirt will prevent proper adhesion.
Attach the speaker protection sheet along the inner edge of the speaker mounting opening inside the inner baffle.
When attaching the inner baffle to the inner panel, ensure the speaker protection sheet is positioned at the top and forms a visor shape.

Installing Fixing Support Tips

Bend the dotted line section 90 degrees so that the double-sided tape side faces inward.

Installing Fixing Support Tips

Peel off the release paper of the double-sided tape, insert it into the cut in the speaker protection sheet, and attach it to the inner baffle.
Insert the fixing support tips into the cut from the inside of the speaker protection sheet.

Attaching the Baffle Protection Sheet

Attach the baffle protection sheet along the speaker mounting opening of the inner baffle.
When attaching, make sure the wave side (bumpy side) of the baffle protection tape faces outward.
Attach the baffle protection sheet over the fixing support tips.
Attach the inner baffle with the installed product to the vehicle's speaker mounting position.
When attaching, if the speaker protection sheet interferes with the window glass or other parts, cut the interfering part before attaching.


Audio Technica AT-AQ473 Sound Tuning Kit Sound Absorbing Noise Reduction Door Lining Speaker Rear Inner Panel

Audio Technica AT-AQ474 Door Tuning Starter Kit Vibration Damping Sound Absorbing Noise Reduction Door Lining Speaker Rear Inner Panel Outer Panel

Audio Technica AT-AQ476 Door Trim Tuning Starter Kit Vibration Damping Anti-vibration Sound Absorbing Soundproofing Door Lining Rattle Prevention

Audio Technica AT-AQ475 Sound Protect Kit Speaker Protection Door Speaker Rear Inner Panel Outer Panel

Audio Technica AT-AQ405 Door Tuning Kit Deadening Kit for 2 Doors Vibration Damping Noise Reduction Soundproofing No Special Tools Required Comes with Dedicated Spatula


Add to Cart

Add to Cart

Add to Cart

Add to Cart

Add to Cart

Customer Reviews
4.5 out of 5 stars
235

4.5 out of 5 stars
235

4.5 out of 5 stars
235

4.5 out of 5 stars
235

4.5 out of 5 stars
235

Price
3,744
3,744
4,211
4,211
3,931
3,931
2,808
2,808
13,213
13,213
Vibration Damping Material
no data
Butyl Rubber + Aluminum Butyl Rubber + Aluminum
no data
Butyl Rubber + Aluminum
Sound Absorbing Material NBR NBR NBR
no data
NBR
Installation Area: Around the speaker, door trim (inner lining)
no data
Door
Capacity: For 2 doors (around the speaker), for 2 doors (around the speaker), for door trim (inner lining), for 2 speakers, for 2 doors
Vibration damping material weight per sheet
no data
Approximately 19g per sheet
no data
Approximately 480g
Accessories
no data

no data

no data
2-Way spatula
Vibration damping material specific gravity
no data
1.8-1.8
no data
1.8
Recommended for those who want to start with simple speaker area deadening first. Improve rattling sounds of door trims (inner linings). Protect speakers from rain and other elements. For those who want to challenge full-fledged deadening and feel the effects.
