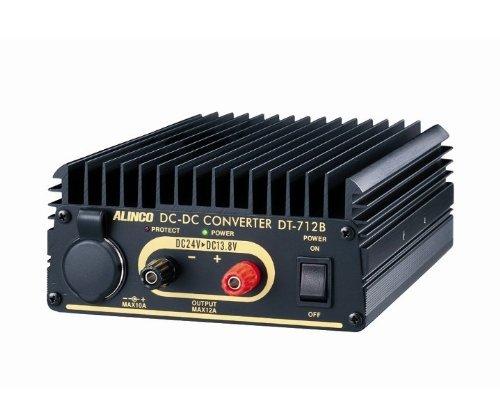

Ships in 1-5 business days: An extra margin for 20W class transceivers.
Please use for devices that do not require memory backup.
This is a dedicated converter for devices such as transceivers that do not require backup.
【Caution】
This product is exclusively for transceivers and car accessories that do not require backup.
The backup power terminal equipped on this product has a maximum capacity of 0.15A.
This terminal was provided to wire the dedicated memory backup power line for older car stereos and clocks.
Recent car electronics products such as car audio and navigation systems have omitted this dedicated backup line, so this product cannot be used with them.
If you connect this product directly to the battery and leave the power switch on, this product will consume standby current, which can cause battery drain if left for a long time.
For car audio and navigation systems, we recommend DT830M, DT830L, or DT831D. The 830 series can draw current up to 10A from the backup terminal, and the 831D can draw current up to 15A.
Input Voltage: DC24V
Output Voltage: DC13.8V (Fixed)
Intermittent Maximum Output (at 13.8V): 13A
Continuous Maximum Output (at 13.8V): 12A
Protection Circuit: Automatic current limiting with "no-ji" characteristic
Protection Circuit Operating Point: 14A or higher
Fuse: 15A
Output Terminals: Screw terminal: 1 system (13A) / Cigarette lighter socket: 1 system (3A) One-touch push terminal: - / Rear terminal: 1 system (DC13.8V/1A)
Meter: -
Fan: -
Examples of connected devices: Transceivers: Up to 35W output / Power boosters: Up to 60W output
| Product # | B000H7J20U |
|---|---|
| Weight | 1642 g |
| Product package size | 26 x 16 x 7 cm |
