Japan Accuride
Manufacturer Inquiries: 06-6535-7213[Features]

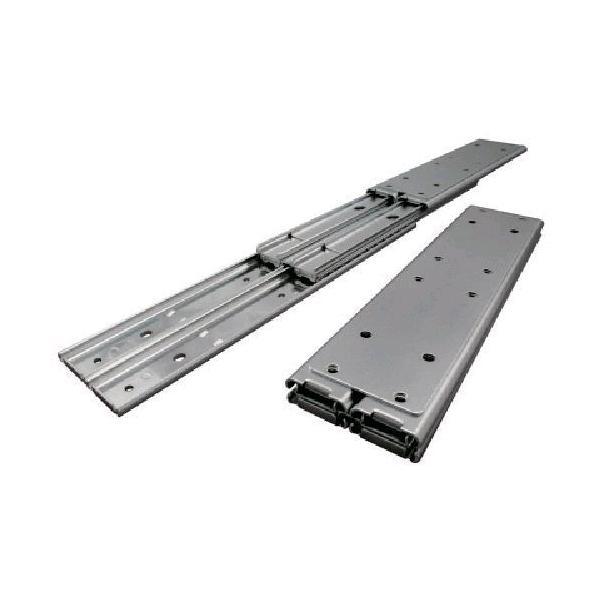

●This is a full-travel slide rail that allows the drawer member to be fully extended.
●Available from the shortest overall length of 12 inches (304.8 mm) to the longest of 28 inches (711.2 mm).
●Precision slide rails using ball bearings, suitable for a wide range of applications from light loads to heavy loads.
[Applications]

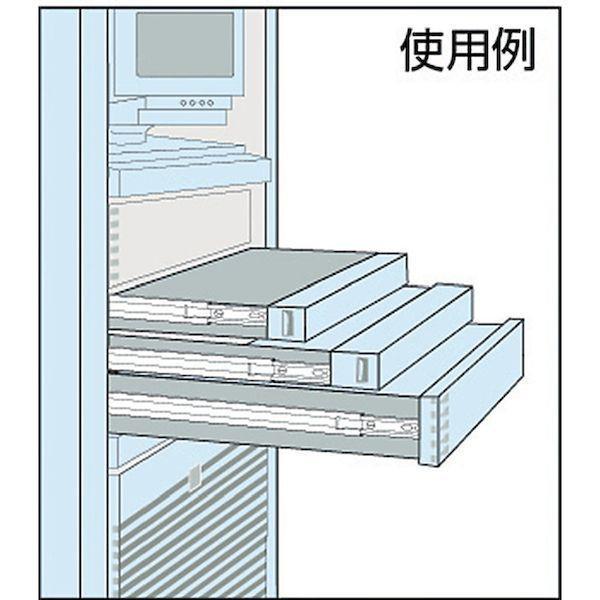

●Drawers for factory equipment, machinery, etc.
●Computers, copiers, measuring instruments, home appliances, steel furniture, etc.
●For heavy loads
[Specifications]
●Width (mm): 23.8
●Height (mm): 71.4
●Length (mm): 609.6
●Movement distance (mm): 632
●Rated load (N) pair/vertical: 2118
[Specifications 2]
●For heavy loads
●3-member full-travel type
●Drawer member cannot be detached
●Mounting screws: Binding (M4) or truss small screws
●Stop type
[Materials/Finish]
●Steel (SPCC)
●Surface treatment: Trivalent chromium plating finish
[Notes]
●When used horizontally, the rated load is 1/4 of the displayed value.
[Country of Origin]
Japan
| Product # | ED566618 |
|---|
