Features:

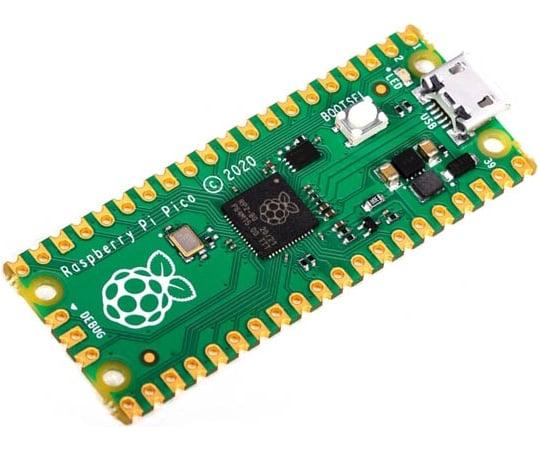

The Pico is an ultra-compact board equipped with the microcontroller RP2040 developed by the Raspberry Pi Foundation. It features the RP2040 microcontroller (Arm Cortex-M0+ dual-core @ 133MHz), 2MB of high-speed Flash memory, and a power management IC supporting input voltages from 1.8V to 5V. Despite its extremely small size (about half that of a micro:bit), it provides full access to the capabilities of the RP2040 microcontroller without sacrificing flexibility. It is designed for learning, hobbyist use, and embedded applications. The Pico can run programs written in Python (MicroPython) or C/C++. Software can be easily written by copying a dedicated binary file from a USB Flash drive to the Pico.
Please note:
- There is no SD card slot for storage.
- It cannot run Linux OS.
- USB cables and pin headers are not included; please purchase separately.
- Although this product has the same specifications as others, the selling price may vary depending on the distributor.
Specifications:
- MCU (Microcontroller): RP2040
- CPU Core: Dual-core Arm Cortex-M0+ processor, maximum operating frequency 133MHz
- RAM: 256KB SRAM
- Flash Memory: 2MB Quad-SPI interface
- Sensors: USB 1.1 microB ×1 (for power supply, data communication (host), program writing (device))
- GPIO Pins: 26 (23 digital-only, 3 analog/digital)
- PIO (Programmable I/O): 8 (can emulate interfaces such as SD card or VGA)
- Temperature Sensor: 1
- LED: 1
- 3-pin ARM serial wire debug (SWD) port: 1
- Communication Functions:
- SPI ×2
- I2C ×2
- UART ×2
- 12-bit ADC ×3
- PWM Channels: 16 (A/B channels ×8, B supports input)
- Analog: 12-bit ADC 500ksps ×3
- Timers: 1 timer (with 4 alarms, 1 real-time counter)
- I/O Voltage: 3.3V
- Power Supply: 1.8V to 5.5V
- Size & Weight: 21 × 51.3 × 3.9 mm, approximately 3g
- Operating Environment: -20°C to +85°C (recommended below +70°C)
- Supply Period: Scheduled until January 2031
References:
- Raspberry Pi Pico Data Sheet
- RP2040-based Microcontroller Board
- RP2040 Data Sheet
- Hardware Design Using Raspberry Pi’s RP2040 Microcontroller
- Board and Product Development Using RP2040 Microcontroller
- Raspberry Pi Pico Starter Guide
- Development of Raspberry Pi Pico and RP2040-based Microcontroller Boards with C/C++
- Pico C/C++ SDK
- RP2040 Microcontroller C/C++ Development Environment (Libraries, Tools)
- Pico Python SDK
- MicroPython Development Environment for RP2040 Microcontroller
- API-level Doxygen Documentation for Raspberry Pi Pico C/C++ SDK is available on the micro site.
Packaging:
- Size: 60 × 105 × 10 mm
- Weight: 10 g
[Regarding packaging size]
| Product # | AS1-67-0391-01 |
|---|
