**Features**

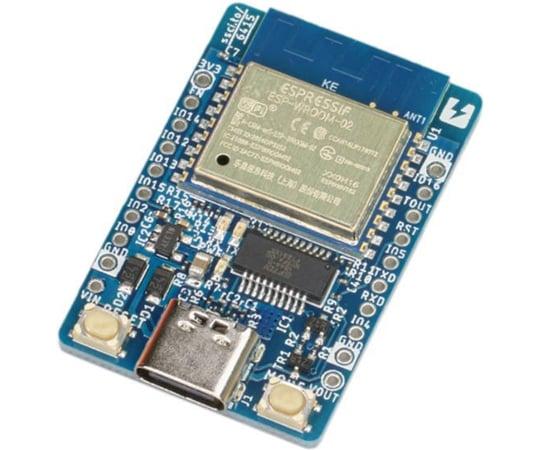

This board converts the ESP-WROOM-02 module to a 2.54mm pitch.
It is a board that converts the wireless communication module ESP-WROOM-02 manufactured by Espressif Systems to a 2.54mm pitch.
The connector on the previous model, ESPr Developer, was microUSB-B, but this has been changed to Type-C.
Similar to the ESPr Developer, it is equipped with a USB-to-serial conversion IC (FT231XS), a 3.3V output regulator, a reset switch, and a switch for switching operating modes, so it can be used immediately with the board alone.

**Caution**
Pin headers and pin sockets are not included. Please prepare them separately.

**Specifications**

**[ESPr Developer Type-C]**
* **Power:** USB Type-C: 5V
* **Power Input Pin (VIN):** 3.7V to 6.0V
* USB and VIN pins can be used simultaneously.
* **Power Output Pin (VOUT):** Outputs the voltage input to the USB or VIN pin.
* **Operating Voltage:** 3.3V
* **Other:**
* Equipped with USB Type-C connector (connected via USB 2.0)
* Equipped with FT231XS
* Equipped with reset switch and operating mode switching switch

**[ESP-WROOM-02]**
* Supports IEEE802.11b/g/n (2.4GHz)
* Equipped with a low-power 32-bit MCU
* Equipped with 2MB of FLASH ROM
* Equipped with a 10-bit A/D converter
* Equipped with TCP/IP protocol stack
* Interfaces include SDIO, (H)SPI, UART, I2C, I2S, IrDA, PWM, GPIO, etc.
* Less than 10μA in deep sleep mode, less than 5μA when power is off
* Less than 2ms from startup to packet transmission
* Less than 1mW standby power consumption (DTIM3)
* +20dBm output (when using 802.11b)
* -40℃ to +125℃
* FCC, CE, and Construction Design Certification acquired

**Documentation**
* Circuit Diagram (pdf)
* Board Outline Diagram
* Manufacturer's Product Page (English)
* Manufacturer's BBS (English)
* Manufacturer's Download Page (English)
* ESP-WROOM-02 Datasheet Version 3.2 (English) (pdf)
* ESP8266EX Datasheet Version 6.6 (English) (pdf)
* ESP8266 Technical Reference Version 1.7 (English) (pdf)
* How to develop with Arduino IDE

**Package Size:** 30 × 5 × 40mm, 10g
