**Features**

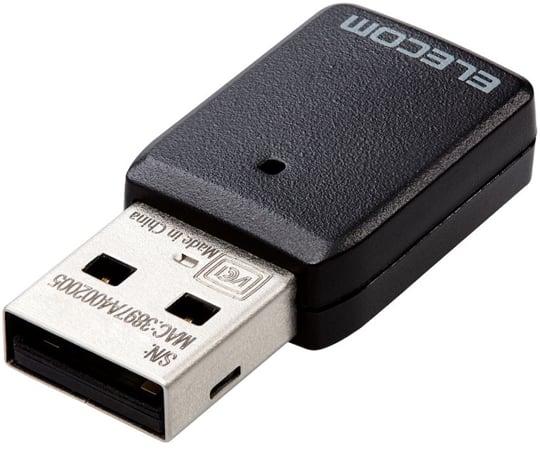

This compact wireless LAN adapter supports USB 3.0 and allows easy Wi-Fi 5 (802.11ac) communication. It can achieve speeds of up to 867 Mbps on the 5 GHz band (11ac/n/a) and up to 300 Mbps on the 2.4 GHz band (11n/g/b) (standard values). Even when attached to a laptop, the protruding part is only about 22 mm, making it a small design that keeps your surroundings tidy.
It also supports the "Beamforming" feature, which enables the reception of concentrated signals even when far from the router, allowing for comfortable communication. *Note: The router must also support "Beamforming (Z)".*
The adapter is equipped with MU-MIMO functionality, allowing it to receive and process data simultaneously with other devices. *Note: The router must also support MU-MIMO.*
This product meets at least one of Elecom's environmental certification standards and displays the "THINK ECOLOGY" mark. It is committed to environmental preservation, with packaging made solely of paper, cardboard, and plastic bags. It complies with the EU RoHS Directive, which restricts the use of certain hazardous substances in electrical and electronic equipment.
**Specifications**
- Supported OS (Windows): Windows 11 / 10
- Supported OS (Mac): macOS Catalina 10.15 / macOS Mojave 10.14
- Wireless Standards: IEEE 802.11ac / IEEE 802.11n / IEEE 802.11g / IEEE 802.11b / IEEE 802.11a
- Wireless Transmission Method:
- IEEE 802.11ac: MIMO-OFDM
- IEEE 802.11n: MIMO-OFDM
- IEEE 802.11g: OFDM
- IEEE 802.11b: DS-SS
- IEEE 802.11a: OFDM
- Wireless Transmission Speed (theoretical):
- IEEE 802.11ac: Up to 867 Mbps
- IEEE 802.11n: Up to 300 Mbps
- IEEE 802.11g: Up to 54 Mbps
- IEEE 802.11b: Up to 11 Mbps
- IEEE 802.11a: Up to 54 Mbps
- Frequency Bands:
- 2.4 GHz band: 2400–2484 MHz
- 5.2 GHz band (W52): 5150–5250 MHz
- 5.3 GHz band (W53): 5250–5350 MHz
- 5.6 GHz band (W56): 5470–5725 MHz
- Channels:
- 2.4 GHz band: 1–13 channels
- 5 GHz bands (W52/W53/W56): 36/40/44/48/52/56/60/64/100/104/108/112/116/120/124/128/132/136/140 channels
- Wireless Security: WPA3 Personal (AES) / WPA2 Personal (AES) / WPA Personal (TKIP) / WEP (64bit/128bit)
*Note: When using WPA3, WPS function cannot be used.*
*Note: For WPA3 on Windows 10, update Windows 10 to version 19H1 or later.*
- Beamforming Functionality: Supported
- MU-MIMO Functionality: Supported
- Configuration Method: WPS (software/button method)
- Access Method: Infrastructure
- Antennas (Number): Built-in, 2 transmit/receive antennas (shared for 2.4 GHz and 5 GHz)
- Transmit Power: 10 mW / MHz or less
- IEEE 802.1X Support: Not supported
- IEEE 802.1X Client: Not supported
- USB Standard: USB 3.0 / USB 2.0
*Note: For communication on the 5 GHz band, connect to a USB 3.0 port to achieve sufficient speed.*
*Note: For communication on the 2.4 GHz band, operates with USB 2.0.*
- Installation: Must be directly attached to a computer; not compatible with USB hubs.
- USB Interface: Type-A (male) × 1 port
- USB Transmission Speed (theoretical):
- USB 3.0: 5 Gbps
- USB 2.0: 480 Mbps
- Input Voltage: DC 5V
- Power Consumption: 4.5W (max, USB 3.0) / 2.5W (max, USB 2.0)
- Current Consumption: 900 mA (max)
- Power Supply: USB bus-powered
- External Dimensions (W×D×H): approximately 16.0 × 34.0 × 8.0 mm
- Weight: approximately 4 g
- Housing Material (Color): Plastic (Black)
- Operating Environment: Temperature 0–40°C, Humidity 20–80% (non-condensing)
- Certifications: TELEC / VCCI Class B / JATE
- Regulatory Compliance: EU RoHS Directive (10 substances) *As of February 2023*
- Warranty Period: 1 year
- Included Accessories: Setup guide
**Package Size**: 85 × 175 × 25 mm
| Product # | AS1-65-9544-23 |
|---|
