[Features]
Commonly known as drill screws. These screws have a drill bit tip at the screw's point, allowing for one-touch drilling, tapping, and fastening into steel plates 1.6mm or thicker. The Jack Point, with its sharp, knife-like cutting edge at the tip (point), has become a long-selling product and is now synonymous with drill screws. Also known as Tex screws, drill screws, self-tapping screws, sheet metal screws, etc. Used in architectural sheet metal work, exterior walls, and roofing to attach hardware, wood, etc., to substrates such as lightweight steel (C-channel) 1.6mm or thicker, without pre-drilling.
[Specifications]
Size: 5×35
Type: Hex (Hexagonal)
Specifications: Chrome-free
Material: Iron
Finish: Trivalent Zinc Chromate + AZ Washer
Overall Length L (mm): 31.5
Head Diameter D (mm): 13
Head Height H (mm): 5.2
Screw Diameter d (mm): 4.8
Pitch p (mm): 1.6
Thread Length S (mm): Fully threaded
Effective Length L1 (mm): 21
Drill Length k (mm): 6
Drill Width dk (mm): 4
Washer Height h (mm): 3.5
Wrench Size B (mm): 8
Applicable Plate Thickness: Up to 4.5mm
[Precautions]
* When fastening to wood-based materials or when there is a gap between the substrate steel plate and the upper steel plate, the nature of drill screws may cause the plate to lift, potentially leading to the breakage of the screw's cutting tip.

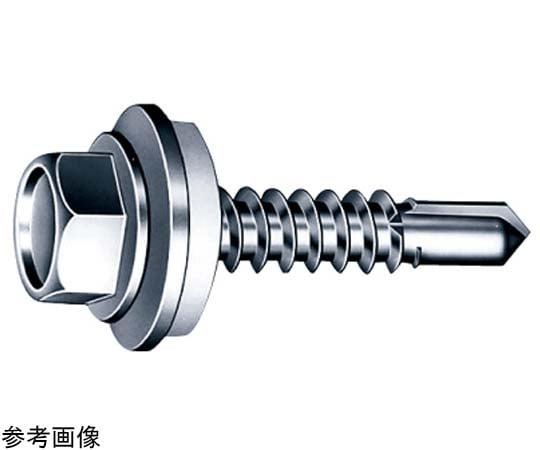

The image is a representative image.
Product Code: 0010-00577
Package Size: 80×130×80mm [About Package Size]
