[Features]
Used to connect a PC's LAN port to network equipment.
LAN cables are essential for connecting PCs and game consoles to a network.
Wired LAN offers faster average communication speeds and greater stability compared to wireless LAN.
CAT6A / Category 6A Compatible
Supports 10GBASE-T. CAT6A achieves a maximum transmission speed of 10Gbps.
The transmission band is 500MHz, which is twice that of CAT6, supporting a high-speed and comfortable internet environment.
*Backward compatible with CAT6, CAT5e, and CAT5.

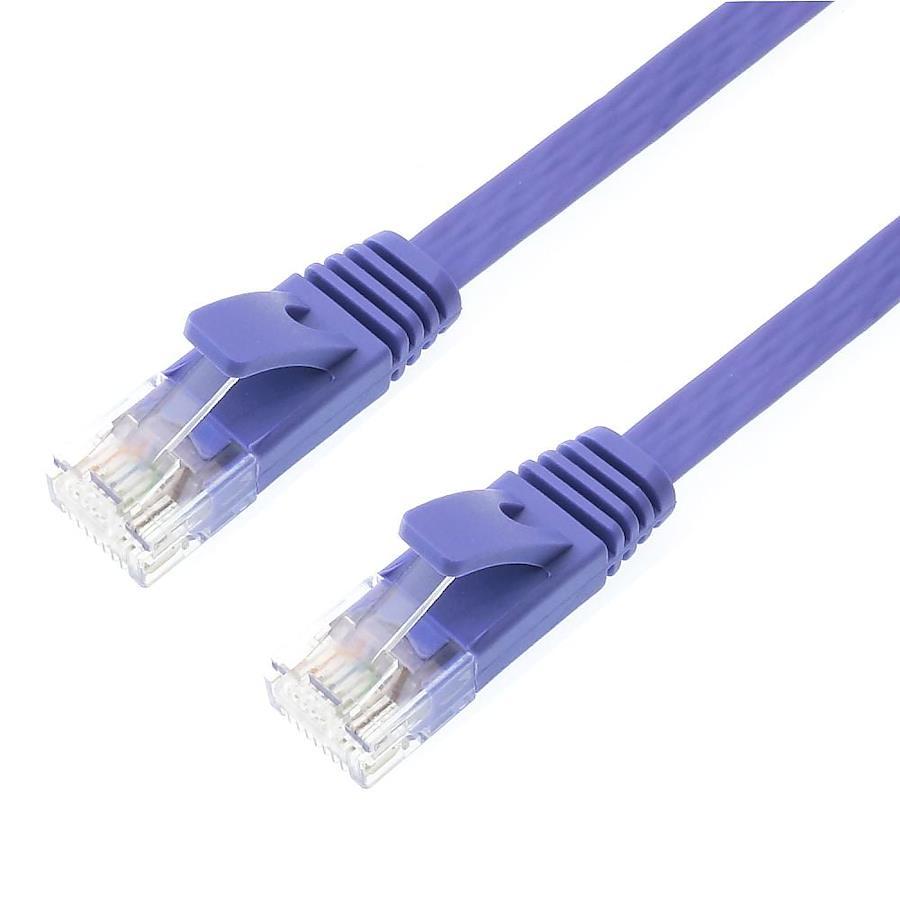

Thin Flat Cable Design
With a thickness of 1.6mm, this flat cable is suitable for wiring in narrow spaces such as under doors, under carpets, and along walls.
Includes Plug Cover to Prevent Connector Tab Breakage
UTP cable for indoor wiring.
[Specifications]
Connector Shape: Both ends RJ-45 connectors (with tab-breakage prevention plug cover)
Cable Wiring: Straight, fully wired
Cable Thickness: 1.6mm
Cable Width: 6.0mm
Cable Length: 2m
Cable Structure: Stranded twisted pair
Supported Transmission Band: 10G BASE-T, 1000BASE-TX(*), 1000BASE-T(*), 100BASE-TX, 10BASE-T
Wiring Standard Name: ANSI/EIA/TIA-568B
Packaging: PE bag
Warranty Period: 1 year
Country of Origin: China
*Regarding the difference between 1000BASE-T and 1000BASE-TX:
Gigabit LAN has the communication standard "1000BASE-T" available with CAT5e or higher, and "1000BASE-TX" supported by CAT6 or higher standards.
These two standards differ in the transmission method of the four twisted pairs inside the cable.
1000BASE-T transmits and receives at 250Mbps per pair (bidirectional communication), resulting in 250Mbps x 4 = 1000Mbps.
In contrast, 1000BASE-TX transmits at 500Mbps using two pairs (unidirectional communication) and receives using the remaining two pairs (unidirectional communication), resulting in 500Mbps x 2 = 1000Mbps.
Package Size: 150 x 210 x 10mm, 40g
[About Package Size]
| Product # | AS1-65-1793-29 |
|---|
